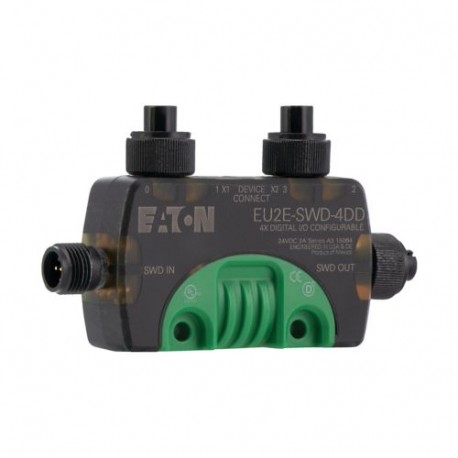

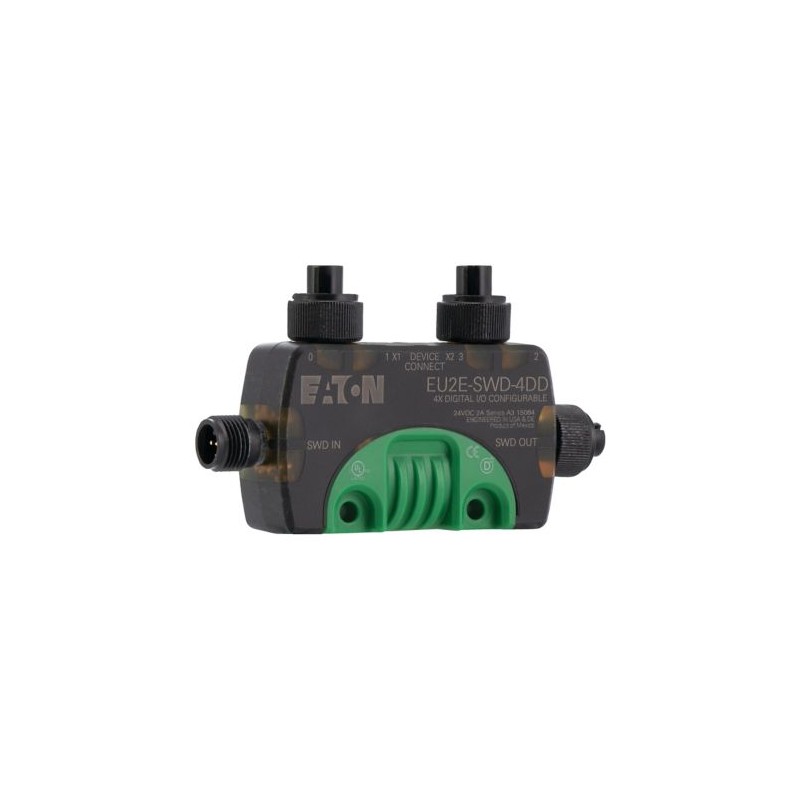

EU2E-SWD-4DD 174732 EATON ELECTRIC Módulo SWDT IP67 4 Entradas/Salidas digitales configurables 2 conectores ..
EU2E-SWD-4DD
174732
EATON-MOELLER
Módulo SWDT IP67; 4 Entradas/Salidas digitales configurables; 2 conectores M12
Módulo SWDT IP67 4 Entradas/Salidas digitales configurables 2
Eaton EU2E SmartWire-DT T-Connector for IP69K I/O modules, 24 V DC, four parameterizable inputs/outputs with power supply, two M12 I/O sockets EU2E-SWD-4DD
Controladores industriales (PLC) > Módulo de entrada/salida digital de periférico descentralizado de bus de campo
Smartwire Darwin
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
Más Información
▲Especificaciones generales
Product Name
Eaton EU2E Digital module
Catalog Number
174732
EAN
4015081712182
Product Length/Depth
98 mm
Product Height
20.1 mm
Product Width
56.9 mm
Product Weight
0.085 kg
Certifications
UL
UL File No.: E170645
CSA
IEC/EN 61131-2
UL File No.: E170645
CSA
IEC/EN 61131-2
Catalog Notes
Plug configuration (X1: 2 I/O, X2: 2 I/O)
Model Code
EU2E-SWD-4DD
Características y funciones
Electric connection type
Screw connection
Features
Fieldbus connection over separate bus coupler possible
Digital inputs configurable
Overload proof (with diagnostics)
Digital outputs configurable
Overload protection (sensor supply)
Short-circuit protection (sensor supply)
Digital inputs configurable
Overload proof (with diagnostics)
Digital outputs configurable
Overload protection (sensor supply)
Short-circuit protection (sensor supply)
Functions
Short-circuit protection, outputs available
For connection of digital I/O signals
For connection of digital I/O signals
General
Current consumption
70 mA, Max. current consumption per M12 I/O plug, Sensor supply, SmartWire-DT network
75 mA, SmartWire-DT network, 24 V, without sensor and without I/O supply
75 mA, SmartWire-DT network, 24 V, without sensor and without I/O supply
Degree of protection
IP69K
Mounting method
Rail mounting possible
Wall mounting/direct mounting
DIN rail
Mounting section (Clip M20)
Screw fixing (M4)
Wall mounting/direct mounting
DIN rail
Mounting section (Clip M20)
Screw fixing (M4)
Overvoltage category
II
Pollution degree
3
Product category
SmartWire-DT slave
Type
Digital modules
Voltage type
DC
Condiciones ambientales y mecánicas
Constant acceleration
1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Constant amplitude
3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations
Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Height of fall (IEC/EN 60068-2-32) - max
0.3 m
Mounting position
As required
Shock resistance
30 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts
Condiciones climáticas ambientales
Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-3
Dry heat to IEC 60068-2-2
Dry heat to IEC 60068-2-2
Environmental conditions
Condensation: permissible
Operating temperature - min
-25 °C
Operating temperature - max
70 °C
Relative humidity
5 - 95 % (non-condensing, IEC/EN 60068-2-30)
Compatibilidad electromagnética
Air discharge
8 kV, according to IEC 61131-2, level 3, ESD
Burst impulse
1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
1 kV, Signal cable, according to IEC/EN 61131-2, Level 3
2 kV, Supply cable, according to IEC/EN 61131-2, Level 3
1 kV, Signal cable, according to IEC/EN 61131-2, Level 3
2 kV, Supply cable, according to IEC/EN 61131-2, Level 3
Contact discharge
4 kV, according to IEC/EN 61131-2, Level 2, ESD
Electromagnetic fields
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
Radiated RFI
10 V (IEC/EN 61131-2:2008, Level 3)
Radio interference class
Class A (EN 55011)
Surge rating
0.5 kV, Surge power cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC
1 kV, Surge I/O cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC
1 kV, Surge I/O cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC
Especificaciones eléctricas
Input current
4 mA (at 24 V DC, Digital inputs)
Input current at signal 1
4 mA
Output current
0.5 A
Power loss
1.8 W
Short-circuit protection
Outputs are short-circuit proof
Short-circuit tripping current
Max. 1.2 A over 3 ms, Digital semi-conductor outputs
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at DC - min
0 VDC
Supply voltage at DC - max
28.8 VDC
Comunicación
Connection to SmartWire-DT
Yes
Connection type
SWD-IN : M12 plug (A-keyed), 5 pole
5-pin M12 socket (A-keyed), Supply and I/O sensor
SWD-OUT: M12 socket (A-keyed), 5 pole
5-pin M12 socket (A-keyed), Supply and I/O sensor
SWD-OUT: M12 socket (A-keyed), 5 pole
Data transfer rate
2 MBit/s, SmartWire-DT
Setting automatically
Setting automatically
LED indicator
Status indication of input: Yellow LED
Status indication of display outputs: Yellow LED
Status indication of SmartWire-DT network: Green LED
Status indication of display outputs: Yellow LED
Status indication of SmartWire-DT network: Green LED
Protocol
Other bus systems
Station
SmartWire-DT slave, SmartWire-DT network
Entrada/salida
Input
Max. 4 Freely configurable inputs/outputs
Input delay
< 0.2 ms
Lamp load
≤ 3 W (at RLL)
Limit value type 1
High: > 15 V DC
Low: < 5 V DC
Low: < 5 V DC
Number of inputs (digital)
4
Number of outputs (digital)
4
Output
Max. 4 Freely configurable inputs/outputs
Max. 4 Transistor Outputs
Max. 4 Transistor Outputs
Switching capacity
IEC/EN 60947-5-1, utilization category DC-13, Digital outputs
Seguridad
Explosion safety category for dust
None
Explosion safety category for gas
None
Potential isolation
Inputs for SmartWire-DT: no
Input to input: no
Output to output: no
Output to input: no
Between Outputs to SmartWire-DT: no
Input to input: no
Output to output: no
Output to input: no
Between Outputs to SmartWire-DT: no
Verificación del diseño
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
1.8 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
