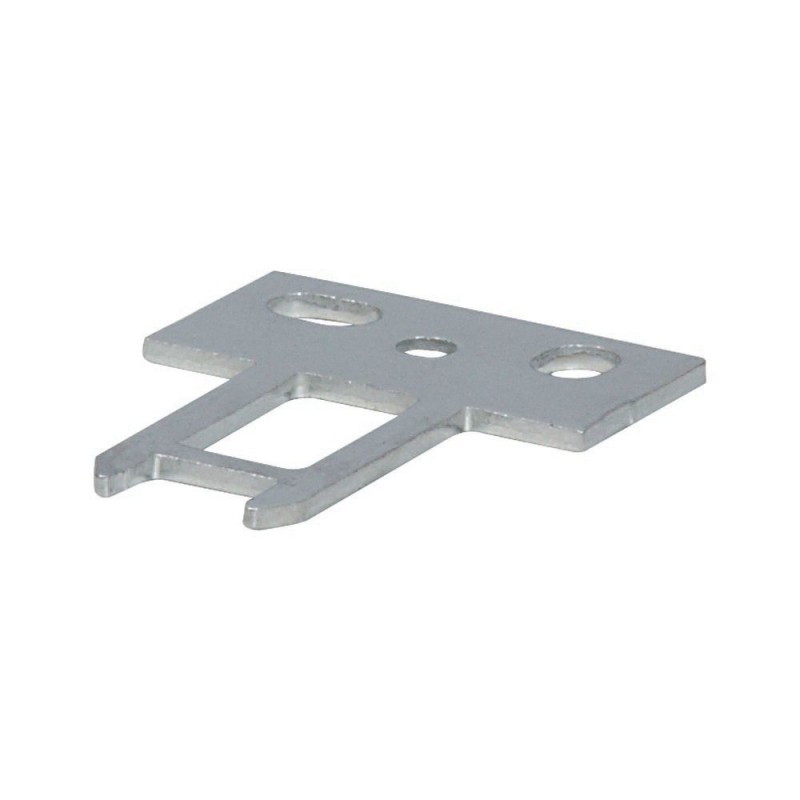

LS-XG-ZBZ 106833 Y7-106833 EATON ELECTRIC Actuador Recto Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

LS-XG-ZBZ 106833 Y7-106833 EATON ELECTRIC Actuador Recto

LS-XG-ZBZ

106833

Y7-106833

EATON-MOELLER

10

Actuador, Recto

Eaton Moeller® series LS Actuator, flat

Actuador, Función básica: actuadores, Referencia del grupo de piezas: LS... ZBZ/X, Función: Actuador plano, Acero inoxidable, Para uso con: Puertas correderas

Más detalles


Sensores > Actuador de interruptor de posición con accionador separado

Interruptores de posición

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $79.03
Precio unitario: $7.90
Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

productos relacionados

▲

Comprados juntos habitualmente

▲

Más vendidos

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton Moeller® series LS Actuator
Catalog Number
106833
EAN
4015081065936
Product Length/Depth
44 mm
Product Height
2 mm
Product Width
35 mm
Product Weight
0.011 kg
Certifications
CSA Class No.: 3211-03
CSA File No.: 012528
UL 508
IEC/EN 60947-5
UL Category Control No.: NKCR
CSA
CSA-C22.2 No. 14
UL
CE
UL File No.: E29184
IEC/EN 60947
Model Code
LS-XG-ZBZ

Product specifications

Type
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Operating frequency
800 Operations/h
Pollution degree
3
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Rated impulse withstand voltage (Uimp)
4000 V AC
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated insulation voltage (Ui)
400 V
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Functions
For combination with LS-...ZBZ/X basic devices
Mounting position
As required
Material
Stainless steel
Overvoltage category
III
Duty factor
100 %
Voltage tolerance
1.1 x Us, Pick-up and drop-out values
0.85 x Us, Pick-up and drop-out values
Repetition accuracy
0.02 mm (Contacts/switching capacity)
Shock resistance
10 g, Standard-action contact, Mechanical, Half-Sinusoidal shock 20 ms
Mechanical holding force
1600 N (according to GS-ET-19 (04/2004), XWA, XFG, XF)
1700 N (according to GS-ET-19 (04/2004), XG, XW, XNG)
1200 N (according to GS-ET-19 (04/2004), XNW)
Supply frequency
Max. 400 Hz, Contacts
Model
Standard actuator
Power consumption
8 W at 24 V DC (electromechanical actuation)
8 VA at 120 V AC (electromechanical actuation)
Rated operational current (Ie)
0.8 A at 110 V
4 A at AC-15, 380 V 400 V 415 V
3 A at 24 V
0.3 A at 220 V
6 A at AC-15, 220 V 230 V 240 V
6 A at AC-15, 24 V
Short-circuit protection rating
Max. 6 A gG/gL, Fuse, Contacts
Terminal capacity (flexible with ferrule)
2 x (0.5 - 1.5) mm²
1 x (0.5 - 1.5) mm²
Terminal capacity (solid)
2 x (0.75 - 1.5) mm²
1 x (0.75 - 2.5) mm²

ETIM for 106833 Sensores (EC001487)
Característica Valor
Modelo (EF000010) Accionador estándar

Datasheet - PDF

▲
Título: Tamaño: Tipo:
PDF CATALOGO EATON CONTROL Y AUTOMATIZACION ES.pdf 9 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
LS-XG-ZBZ Y7-106833 106833 FR_106837.pdf 4 Mbytes LS-XG-ZBZ Y7-106833 106833 FR_106837.pdf
