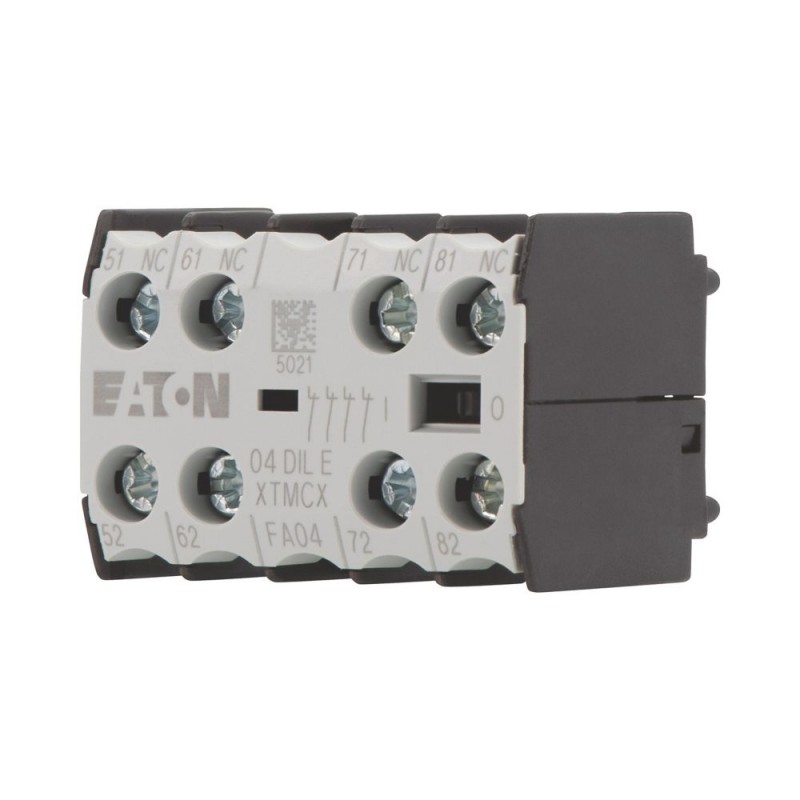

04DILE 010256 Y7-10256 EATON ELECTRIC Bloque de contactos auxiliares 4 NC Montaje frontal Conexión a tornill.. Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

04DILE 010256 Y7-10256 EATON ELECTRIC Bloque de contactos auxiliares 4 NC Montaje frontal Conexión a tornill..

04DILE

010256

Y7-10256

EATON-MOELLER

Bloque de contactos auxiliares, 4 NC, Montaje frontal, Conexión a

Eaton Moeller® series DILE Auxiliary contact module, 4 pole, 4 NC, Front fixing, Screw terminals, DILE(E)M, DILER

Módulo de contacto auxiliar, con contactos opuestos enclavados, Elementos de conmutación según EN 50005, Se prefieren elementos de conmutación según EN 50012., Las combinaciones de la versión E corresponden a EN 50011 y son preferibles., Función: para aplicaciones estándar, 4 polos, Técnica de conexión: Terminales de tornillo, Corriente nominal de funcionamiento AC-15 220 V 230 V 240 V: Ie= 4 A, Corriente nominal de funcionamiento AC-15 380 V 400 V 415 V: Ie= 2 A, Contactos N/C = Normalmente cerrados: 4 NC, Tipo de montaje: Fijación frontal, Para uso con: DILEM-10(-G)(...), DILEM-01(-G)(...), DILEM-4(-G)(...), DILER40(-G), DILER31(-G), DILER22, DILEEM-10(-G)(...), DILEEM-01(-G)(...) , DILEM12-10(-G)(...), DILEM12-01(-G)(...), Instrucciones: Contactos opuestos enclavados según IEC/EN 60947-5-1 apéndice L, dentro de los módulos de contactos auxiliares, también para los contactos auxiliares integrados del DILE(E)M, Contactos auxiliares utilizados como contactos de espejo según IEC/EN 60947-4-1 Apéndice F (no N/C de apertura tardía), Número de código y versión de combinación Número distintivo: 44 E, 35, 26

Más detalles


Componentes industriales de baja tensión > Bloque de contactos auxiliares

Contactores hasta 170A

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $19.79
Precio unitario: $19.79
Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

productos relacionados

▲

Comprados juntos habitualmente

▲

Más vendidos

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton Moeller® series DILE Accessory Auxiliary contact module
Catalog Number
010256
EAN
4015080102564
Product Length/Depth
36 mm
Product Height
32 mm
Product Width
45 mm
Product Weight
0.04 kg
Certifications
CE
IEC/EN 60947-4-1
CSA-C22.2 No. 14-05
UL
CSA Class No.: 3211-03
CSA File No.: 012528
UL 508
IEC/EN 60947
CSA
UL Category Control No.: NKCR
UL File No.: E29184
VDE 0660
Model Code
04DILE

Características y Funciones

Electric connection type
Screw connection
Features
Interlocked opposing contacts within an auxiliary contact module (according to IEC 60947-5-1 Annex L)
Fitted with:
Interlocked opposing contacts
Switching elements according to EN 50005
Functions
For standard applications
Number of poles
Four-pole

General

Lifespan, mechanical
10,000,000 Operations (AC operated)
20,000,000 Operations (DC operated)
200,000 Operations (at 240 V, AC-15)
150,000 Operations (at 240 V, DC, L/R = 50 ms: 2 contacts in series 0.5 A)
Model
Top mounting
Mounting method
Front fastening
Mounting position
As required (except vertical with terminals A1/A2 at the bottom)
Operating frequency
9000 Operations/h
Overvoltage category
III
Pollution degree
3
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
6000 V AC
Shock resistance
10 g, N/O contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
8 g, N/C contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Condiciones climáticas ambientales

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C
Ambient operating temperature (enclosed) - min
-25 °C
Ambient operating temperature (enclosed) - max
40 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Secciones de conexión

Terminal capacity (flexible with ferrule)
1 x (0.75 - 1.5) mm²
2 x (0.75 - 1.5) mm²
Terminal capacity (solid)
1 x (0.75 - 2.5) mm²
2 x (0.75 - 2.5) mm²
Terminal capacity (solid/stranded AWG)
Single 18 – 14, double 18 – 14
Screwdriver size
0.8 x 5.5/1 x 6 mm, Terminal screw, Standard screwdriver
2, Terminal screw, Pozidriv screwdriver
Tightening torque
1.2 Nm, Screw terminals

Especificaciones eléctricas

Rated operational voltage (Ue) at AC - max
600 V
Rated insulation voltage (Ui)
690 V
Rated operational current (Ie)
1.5 A at 110 V, DC L/R ≤ 15 ms (with 3 contacts in series)
2.5 A at 24 V, DC L/R ≤ 15 ms (with 1 contact in series)
2.5 A at 60 V, DC L/R ≤ 15 ms (with 2 contacts in series)
0.5 A at 220 V, DC L/R ≤ 15 ms (with 3 contacts in series)
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
4 A
Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V
2 A
Rated operational current (Ie) at AC-15, 500 V
1.5 A
Safe isolation
300 V AC, Between coil and auxiliary contacts, According to EN 61140
300 V AC, Between auxiliary contacts, According to EN 61140

Clasificación de cortocircuito

Short-circuit protection rating
10 A fast, 500V, Maximum fuse, Short-circuit rating without welding, Contacts
Short-circuit protection rating without welding
6 A gG/gL, 500 V, Max. Fuse, Contacts

Intesidad térmica convencional Ith

Conventional thermal current ith of auxiliary contacts (1-pole, open)
10 A

Poder de corte

Switching capacity (auxiliary contacts, general use)
0.5 A, 250 V DC, (UL/CSA)
10 A, 600 V AC, (UL/CSA)
Switching capacity (auxiliary contacts, pilot duty)
P300, DC operated (UL/CSA)
A600, AC operated (UL/CSA)

Contactos

Code number
35 in combination with DILER-31(-G)
26 in combination with DILER-22
44E
Control circuit reliability
< 2 λ, < 1 failure at 100,000,000 Operations (at Uₑ = 24 V DC, Umin = 17 V, Imin = 5.4 mA)
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
4
Number of contacts (normally open contacts)
0

Verificación del diseño

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.24 W
Rated operational current for specified heat dissipation (In)
4 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 010256 Interruptores de baja tensión (EC000041)
Característica Valor
Número de contactos inversores (EF008257) 0
Número de contactos normalmente abiertos (EF008256) 0
Número de contactos normalmente cerrados (EF008255) 4
Número de interruptores de señal de error (EF007613) 0
Corriente de funcionamiento nominal Ie a CA-15, 230 V (EF001385) 4 A
Ejecución de la conexión eléctrica (EF003961) Conexión roscada
Modelo (EF000010) Montaje superior
Método de montaje (EF000003) Fijación delantera
Portalámparas (EF000048) Ninguno

Datasheet - PDF

▲
Título: Tamaño: Tipo:
PDF CATALOGO EATON CONTROL Y AUTOMATIZACION ES.pdf 9 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
04DILE Y7-10256 010256 EN_230260.pdf 1 Mbytes 04DILE Y7-10256 010256 EN_230260.pdf
