13DILE
002397
Y7-2397
EATON-MOELLER
1

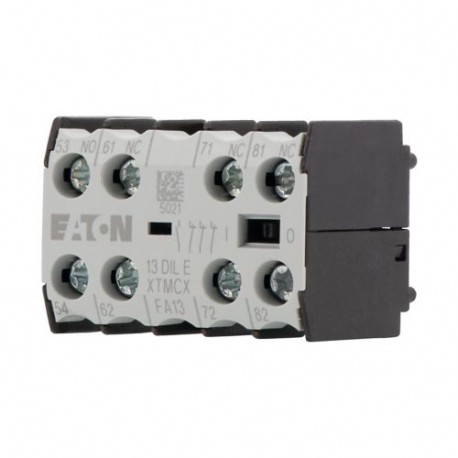

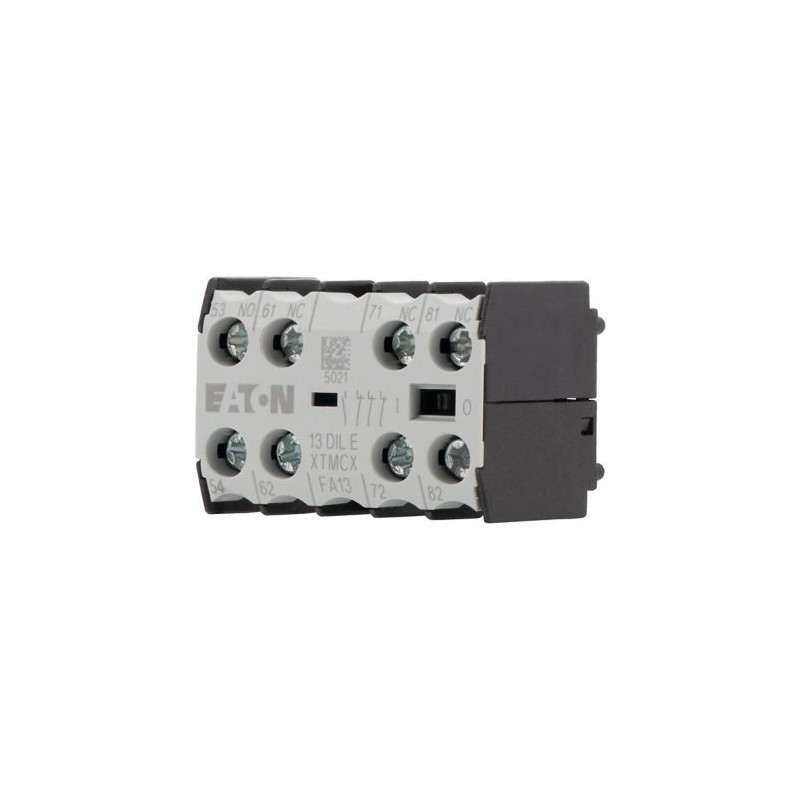

Bloque de contactos auxiliares, 1 NO + 3 NC, Montaje frontal, Conexión a
Eaton Moeller® series DILE Auxiliary contact module, 4 pole, 1 N/O, 3 NC, Front fixing, Screw terminals, DILE(E)M, DILER
Módulo de contacto auxiliar, con contactos opuestos enclavados, Elementos de conmutación según EN 50005, Se prefieren elementos de conmutación según EN 50012., Las combinaciones de la versión E corresponden a EN 50011 y son preferibles., Función: para aplicaciones estándar, 4 polos, Técnica de conexión: Terminales de tornillo, Corriente nominal de funcionamiento AC-15 220 V 230 V 240 V: Ie= 4 A, Corriente nominal de funcionamiento AC-15 380 V 400 V 415 V: Ie= 2 A, Contactos N/O = Normalmente abiertos: 1 N/A, Contactos N/C = Normalmente cerrados: 3 NC, Tipo de montaje: Fijación frontal, Para usar con: DILEM-10(-G)(...), DILEM-01(-G)(...), DILEM-4(-G)(...), DILER40(-G), DILER31(-G), DILER22 , DILEEM-10(-G)(...), DILEEM-01(-G)(...), DILEM12-10(-G)(...), DILEM12-01(-G)(...), Instrucciones: Contactos opuestos enclavados según IEC/EN 60947-5-1 apéndice L, dentro de los módulos de contactos auxiliares, también para los contactos auxiliares integrados del DILE(E)M, Contactos auxiliares utilizados como contactos de espejo según IEC/EN 60947-4-1 Apéndice F (no N/C de apertura tardía), Número de código y versión de combinación Número distintivo: 53E, 44, 35
Componentes industriales de baja tensión > Bloque de contactos auxiliares
Contactores hasta 170A
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
| Product Name | Eaton Moeller® series DILE Accessory Auxiliary contact module |
| Catalog Number | 002397 |
| EAN | 4015080023975 |
| Product Length/Depth | 36 mm |
| Product Height | 32 mm |
| Product Width | 45 mm |
| Product Weight | 0.04 kg |
| Certifications | IEC/EN 60947 CSA CE UL Category Control No.: NKCR IEC/EN 60947-4-1 UL VDE 0660 UL File No.: E29184 CSA-C22.2 No. 14-05 UL 508 CSA Class No.: 3211-03 CSA File No.: 012528 |
| Model Code | 13DILE |
| Electric connection type | Screw connection |
| Features | Interlocked opposing contacts within an auxiliary contact module (according to IEC 60947-5-1 Annex L) |
| Fitted with: | Interlocked opposing contacts Switching elements according to EN 50005 |
| Functions | For standard applications |
| Number of poles | Four-pole |
| Lifespan, mechanical | 200,000 Operations (at 240 V, AC-15) 10,000,000 Operations (AC operated) 20,000,000 Operations (DC operated) 150,000 Operations (at 240 V, DC, L/R = 50 ms: 2 contacts in series 0.5 A) |
| Model | Top mounting |
| Mounting method | Front fastening |
| Mounting position | As required (except vertical with terminals A1/A2 at the bottom) |
| Operating frequency | 9000 Operations/h |
| Overvoltage category | III |
| Pollution degree | 3 |
| Protection | Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274) |
| Rated impulse withstand voltage (Uimp) | 6000 V AC |
| Shock resistance | 8 g, N/C contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms 10 g, N/O contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms |
| Ambient operating temperature - min | -25 °C |
| Ambient operating temperature - max | 50 °C |
| Ambient operating temperature (enclosed) - min | -25 °C |
| Ambient operating temperature (enclosed) - max | 40 °C |
| Ambient storage temperature - min | -40 °C |
| Ambient storage temperature - max | 80 °C |
| Climatic proofing | Damp heat, constant, to IEC 60068-2-78 Damp heat, cyclic, to IEC 60068-2-30 |
| Terminal capacity (flexible with ferrule) | 1 x (0.75 - 1.5) mm² 2 x (0.75 - 1.5) mm² |
| Terminal capacity (solid) | 1 x (0.75 - 2.5) mm² 2 x (0.75 - 2.5) mm² |
| Terminal capacity (solid/stranded AWG) | Single 18 – 14, double 18 – 14 |
| Screwdriver size | 0.8 x 5.5/1 x 6 mm, Terminal screw, Standard screwdriver 2, Terminal screw, Pozidriv screwdriver |
| Tightening torque | 1.2 Nm, Screw terminals |
| Rated operational voltage (Ue) at AC - max | 600 V |
| Rated insulation voltage (Ui) | 690 V |
| Rated operational current (Ie) | 1.5 A at 110 V, DC L/R ≤ 15 ms (with 3 contacts in series) 2.5 A at 24 V, DC L/R ≤ 15 ms (with 1 contact in series) 2.5 A at 60 V, DC L/R ≤ 15 ms (with 2 contacts in series) 0.5 A at 220 V, DC L/R ≤ 15 ms (with 3 contacts in series) |
| Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V | 4 A |
| Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V | 2 A |
| Rated operational current (Ie) at AC-15, 500 V | 1.5 A |
| Safe isolation | 300 V AC, Between coil and auxiliary contacts, According to EN 61140 300 V AC, Between auxiliary contacts, According to EN 61140 |
| Short-circuit protection rating | 10 A fast, 500V, Maximum fuse, Short-circuit rating without welding, Contacts |
| Short-circuit protection rating without welding | 6 A gG/gL, 500 V, Max. Fuse, Contacts |
| Conventional thermal current Ith of auxiliary contacts (1-pole, open) | 10 A |
| Switching capacity (auxiliary contacts, general use) | 10 A, 600 V AC, (UL/CSA) 0.5 A, 250 V DC, (UL/CSA) |
| Switching capacity (auxiliary contacts, pilot duty) | P300, DC operated (UL/CSA) A600, AC operated (UL/CSA) |
| Code number | 53 E in combination with DILER-40(-G) 44 in combination with DILER-31(-G) 35 in combination with DILER-22 |
| Control circuit reliability | < 2 λ, < 1 failure at 100,000,000 Operations (at Uₑ = 24 V DC, Umin = 17 V, Imin = 5.4 mA) |
| Number of contacts (change-over contacts) | 0 |
| Number of contacts (normally closed contacts) | 3 |
| Number of contacts (normally open contacts) | 1 |
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 0.24 W |
| Rated operational current for specified heat dissipation (In) | 4 A |
| Static heat dissipation, non-current-dependent Pvs | 0 W |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Meets the product standard's requirements. |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| Característica | Valor |
|---|---|
| Número de contactos inversores (EF008257) | 0 |
| Número de contactos normalmente abiertos (EF008256) | 1 |
| Número de contactos normalmente cerrados (EF008255) | 3 |
| Número de interruptores de señal de error (EF007613) | 0 |
| Corriente de funcionamiento nominal Ie a CA-15, 230 V (EF001385) | 4 A |
| Ejecución de la conexión eléctrica (EF003961) | Conexión roscada |
| Modelo (EF000010) | Montaje superior |
| Método de montaje (EF000003) | Fijación delantera |
| Portalámparas (EF000048) | Ninguno |
