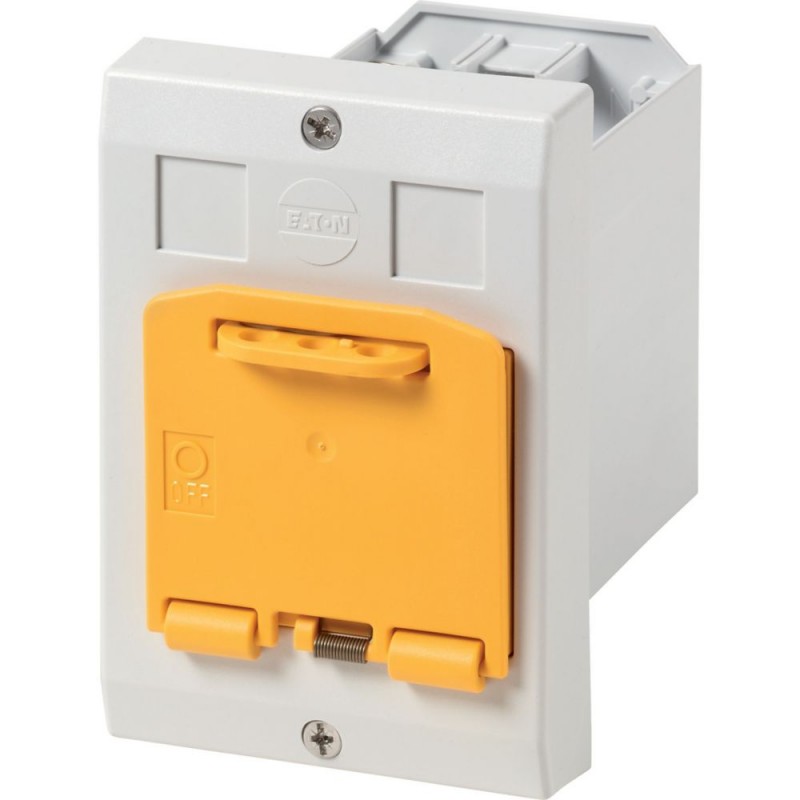

E-PKZ01-SVB 281635 XTPBXENCFLO55 EATON ELECTRIC Caja aislante de empotrar IP65 Para PKZ01 + función de bloqu.. Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

E-PKZ01-SVB 281635 XTPBXENCFLO55 EATON ELECTRIC Caja aislante de empotrar IP65 Para PKZ01 + función de bloqu..

E-PKZ01-SVB

281635

XTPBXENCFLO55

EATON-MOELLER

Caja aislante de empotrar; IP65; Para PKZ01; + función de bloqueo por candado

Eaton Moeller® series E-PKZ0 Insulated enclosure, E-PKZ0, H x W x D = 129 x 90 x 128 mm, flush-mounted, + yellow padlock device

Más detalles


Interruptores de baja tensión > Carcasa vacía para aparamenta

Interruptor protector motor PKZ (Accesorios)

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $24.46
Precio unitario: $24.46

*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Más vendidos

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton Moeller® series E-PKZ0 Accessory Insulated enclosure
Catalog Number
281635
EAN
4015082816353
Product Length/Depth
128 mm
Product Height
129 mm
Product Width
90 mm
Product Weight
0.265 kg
Certifications
CSA Class No.: 3211-05
UL Category Control No.: NLRV
CSA-C22.2 No. 14
IEC/EN 60947-4-1
UL
CSA
UL File No.: E36332
CE
CSA File No.: 165628
UL 508
Model Code
E-PKZ01-SVB

Características y Funciones

Enclosure material
Plastic
Features
Can be locked in 0 position
Fitted with:
PE(N) terminal

General

Degree of protection (front side)
IP65
Model
Built-in
Product category
Accessories
Suitable for
Emergency stop

Condiciones climáticas ambientales

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
40 °C

Verificación del diseño

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
