> EATON - MOELLER series>Cajas aislantes>CI-K2-100-AD 207631 ELECTRIC Caja Aislan.,100x160x99
Anterior producto Siguiente producto

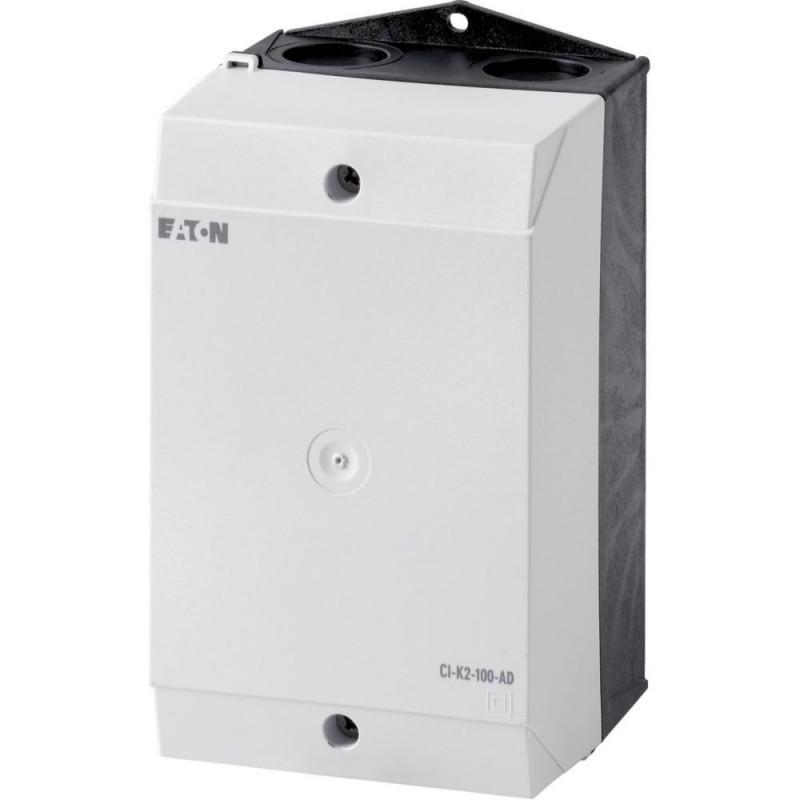

CI-K2-100-AD 207631 EATON ELECTRIC Caja Aislan.,100x160x99 Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

CI-K2-100-AD 207631 EATON ELECTRIC Caja Aislan.,100x160x99

CI-K2-100-AD

207631

EATON-MOELLER

Caja Aislan.,100x160x99

Eaton Moeller® series CI-K Insulated enclosure, HxWxD=160x100x100mm, +component adapter DILE+ZE

Más detalles


Interruptores de baja tensión > Carcasa vacía para aparamenta

Cajas aislantes

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $32.76
Precio unitario: $32.76

Cantidad Precio
1+$32.76
2+$32.76
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Más vendidos

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton Moeller® series CI-K Insulated enclosure
Catalog Number
207631
EAN
4015082076313
Product Length/Depth
181 mm
Product Height
100 mm
Product Width
100 mm
Product Weight
0.38 kg
Compliances
CE
Model Code
CI-K2-100-AD

Características y Funciones

Enclosure material
Plastic

General

Degree of protection
IP65
NEMA Other
Degree of protection (front side)
IP65
Model
Surface mounting

Verificación del diseño

Equipment heat dissipation, current-dependent Pvid
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Not applicable.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Meets the product standard's requirements.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Datasheet - PDF

▲
Título: Tamaño: Tipo:
PDF CATALOGUE EATON EN.pdf 51 Mbytes
CI-K2-100-AD 207631 ES_225325.pdf 1 Mbytes CI-K2-100-AD 207631 ES_225325.pdf
