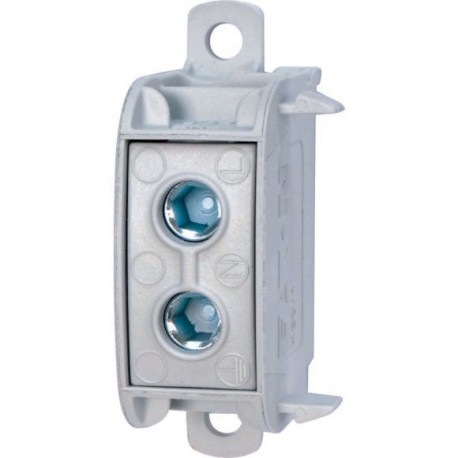

K-CI-K5 218488 Y7-218488 EATON ELECTRIC Borne para Conductor de Neutro Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

K-CI-K5 218488 Y7-218488 EATON ELECTRIC Borne para Conductor de Neutro

K-CI-K5

218488

Y7-218488

EATON-MOELLER

Borne para Conductor de Neutro

Eaton Moeller® series K-CI Neutral terminal

Terminal neutro, Para la conexión de un 5º conductor, Para usar con: CI-K5, T5-.../I5,, CI-K5-T5-..., P3-.../I5

Más detalles


Componentes industriales de baja tensión > Accesorios para la tecnología de conmutación de baja tensión

Cajas aislantes

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $16.13
Precio unitario: $16.13
Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

productos relacionados

▲

Comprados juntos habitualmente

▲

Más vendidos

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton Moeller® series K-CI Accessory Neutral terminal
Catalog Number
218488
EAN
4015082184889
Product Length/Depth
36 mm
Product Height
60 mm
Product Width
18 mm
Product Weight
0.05 kg
Certifications
UL/CSA certification not required
Model Code
K-CI-K5

Características y Funciones

Fitted with:
PE, N adhesive labels
Functions
For snap-fitting onto mounting rail
Connection of a 5th conductor

General

Accessory/spare part type
Connector
Product category
CI-K small enclosures
Type
Neutral terminals
Used with
T5-…/I5,
T5-…/I5

Condiciones climáticas ambientales

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
40 °C

Secciones de conexión

Terminal capacity
Round solid copper conductor, 2.5 - 50 mm²
2 x 50 mm²
Cu ribbon cable, 3 x 9 x 0.8 mm
Round stranded copper conductor, 2.5 - 50 mm²
Round flexible copper conductor with ferrule, 2.5 - 35 mm²
Stripping length (main cable)
16 mm
Screw size
5 mm AF, Hexagon socket-head spanner

Especificaciones eléctricas

Rated operational voltage
690 V
Rated uninterrupted current (Iu)
150 A

Verificación del diseño

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
7.5 W
Rated operational current for specified heat dissipation (In)
100 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 218488 Interruptores de baja tensión (EC002498)
Característica Valor
Tipo de accesorio/repuesto (EF000215) Conector
Accesorio (EF013236) Sí
Recambio (EF013237) No

Datasheet - PDF

▲
Título: Tamaño: Tipo:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
