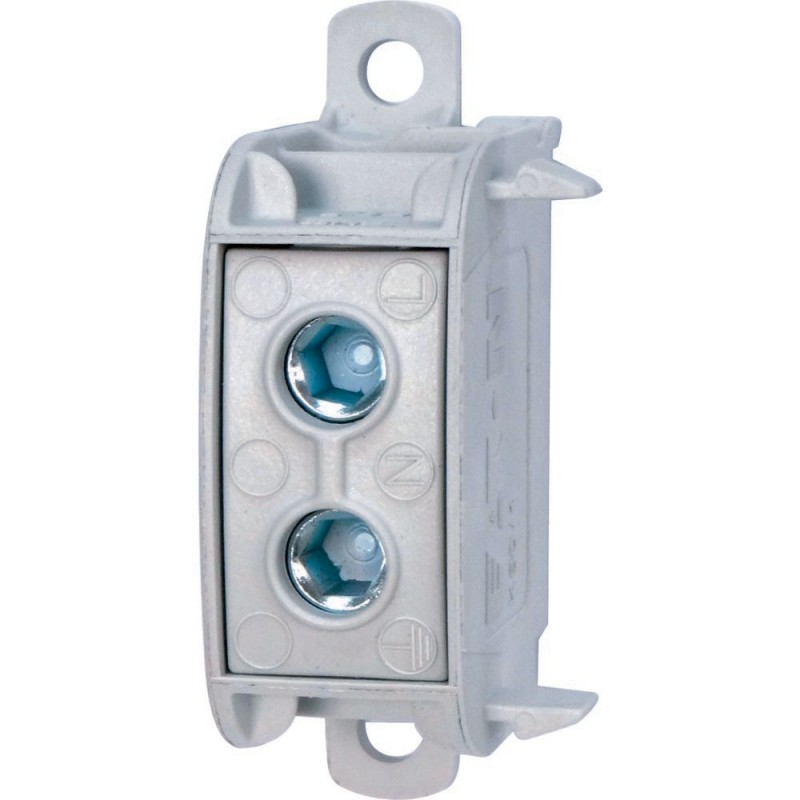

K-CI-K5 218488 Y7-218488 EATON ELECTRIC 218488 K-CI-K5 Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

K-CI-K5 218488 Y7-218488 EATON ELECTRIC 218488 K-CI-K5

K-CI-K5

218488

Y7-218488

EATON-MOELLER

218488 K-CI-K5

K-CI-K5

Eaton Moeller® series K-CI Neutral terminal

Borne neutre, Pour le raccordement d’un 5ème conducteur, Pour une utilisation avec : CI-K5, T5-.../I5,, CI-K5-T5-..., P3-.../I5

Plus de détails


Appareillage industriel basse tension > Accessoires pour connectique basse tension

Boites isolantes

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $16.06
Prix unitaire: $16.06
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Related products

▲

Achetés habituellement ensemble

▲

Les plus vendus

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton Moeller® series K-CI Accessory Neutral terminal
Catalog Number
218488
Model Code
K-CI-K5
EAN
4015082184889
Product Length/Depth
36 mm
Product Height
60 mm
Product Width
18 mm
Product Weight
0.05 kg
Certifications
UL/CSA certification not required

Spécifications du produit

Type
Neutral terminals
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
PE, N adhesive labels
Accessory/spare part type
Connector
Used with
T5-…/I5,
T5-…/I5
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
7.5 W
Rated operational current for specified heat dissipation (In)
100 A
Rated uninterrupted current (Iu)
150 A
Static heat dissipation, non-current-dependent Pvs
0 W
Stripping length (main cable)
16 mm
Product category
CI-K small enclosures
Functions
For snap-fitting onto mounting rail
Connection of a 5th conductor
Screw size
5 mm AF, Hexagon socket-head spanner
Rated operational voltage
690 V
Terminal capacity
Round solid copper conductor, 2.5 - 50 mm²
2 x 50 mm²
Cu ribbon cable, 3 x 9 x 0.8 mm
Round stranded copper conductor, 2.5 - 50 mm²
Round flexible copper conductor with ferrule, 2.5 - 35 mm²

ETIM for 218488 Appareillage industriel basse tension (EC002498)
Caractéristique Valeur
Type d'accessoire (EF000215) Connecteur
Accessoire (EF013236) Oui
Pièce détachée (EF013237) Non

Datasheet - PDF

▲
Titre: Taille: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
K-CI-K5 Y7-218488 218488 FR_218488.pdf 110 Kbytes K-CI-K5 Y7-218488 218488 FR_218488.pdf
