EC4E-221-6D4R1 114296 EATON MOELLER Ampliación CAN 6DI/4DOR Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

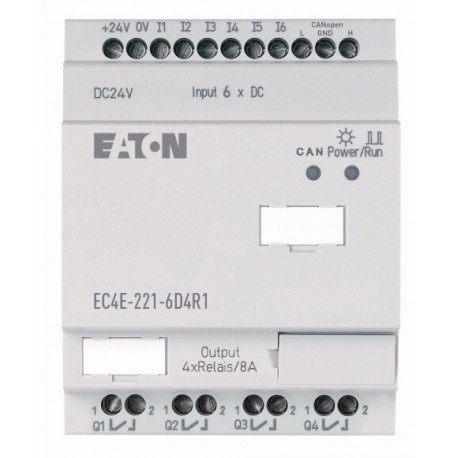

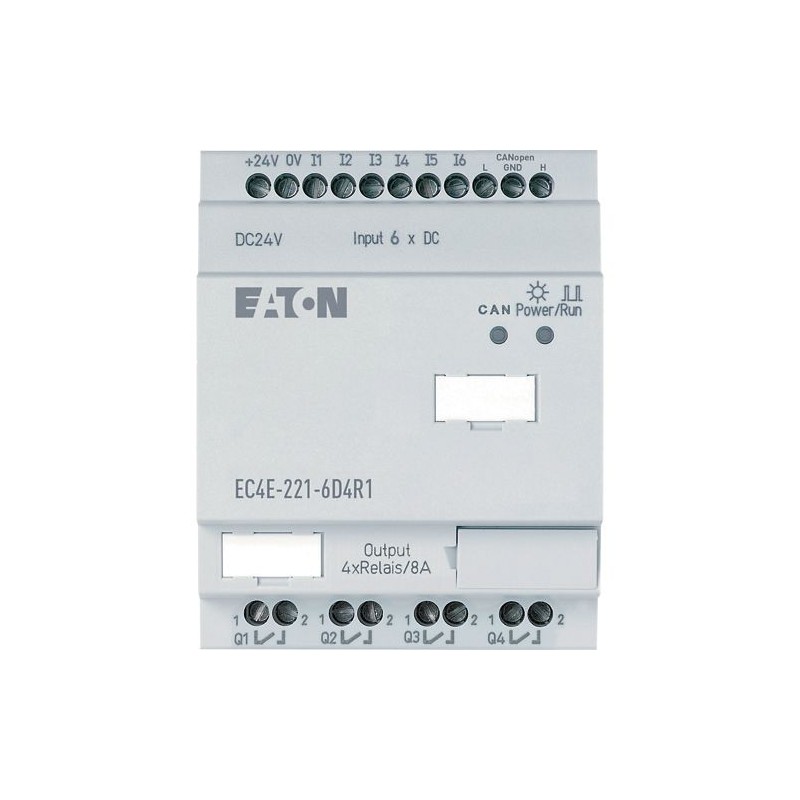

EC4E-221-6D4R1 114296 EATON MOELLER Ampliación CAN 6DI/4DOR

EC4E-221-6D4R1

114296

EATON - MOELLER

Disponible

Envío el hoy

Ampliación CAN 6DI/4DOR

Más detalles


Automatas Programables Plcs

EC4E - Módulos de entradas / salidas - EATON - MOELLER

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

Cantidad Precio
1+$150.51
4+$136.50
7+$132.71
10+$130.70
14+$129.36
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Productos relacionados

Más Información



Delivery programme
Product range
  Remote I/O systems
Subrange
  I/O expansions digital/analog
Basic function
  Expansions
Description
  usable via CANopen®
Function
  CANopen® expansion EC4E
Inputs

Inputs expansion (number)
  Digital: 6
Additional features

Real time clock

General
Dimensions (W x H x D)
 mm71.5 x 90 x 58 (4 PE)
Weight
 kg0.2
Mounting
  Top-hat rail IEC/EN 60715, 35 mm or screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Terminal capacities
Solid
 mm20.2/4 (AWG 22 - 12)
Flexible with ferrule
 mm20.2/2.5 (AWG 22 - 12)
Standard screwdriver
 mm3.5 x 0.8
Max. tightening torque
 Nm0.6
Climatic environmental conditions
Operating ambient temperature
 °C-25 to 55, cold as per IEC 60068-2-1, heat as per IEC 60068-2-2
Condensation
  Take appropriate measures to prevent condensation
Storage
ϑ°C-40 - +70
Ambient conditions, mechanical
Mounting position
  Vertical or horizontal
Electromagnetic compatibility (EMC)
Overvoltage category/pollution degree
  II/2
Electrostatic discharge (ESD)

applied standard
  IEC EN 61000-4-2, Level 3
Air discharge
 kV8
Electromagnetic fields (RFI) to IEC EN 61000-4-3
 V/m10
Burst
 kVaccording to IEC/EN 61000-4-4
power pulses (Surge)
  2 kV (supply cables, symmetrical, EASY...AC)
0.5 kV (supply cables, symmetrical, easy-DC)
according to IEC/EN 61000-4-5
Immunity to line-conducted interference to (IEC/EN 61000-4-6)
 V10
Insulation resistance
Clearance in air and creepage distances
  EN 50178, UL 508, CSA C22.2, No. 142
Insulation resistance
  EN 50178
Power supply
Rated operational voltage
UeV24 DC (-15/+20%)
Permissible range
Ue 20.4 - 28.8 V DC
Residual ripple
 %
Technical data for design verification

Rated operational current for specified heat dissipation
InA0
Heat dissipation per pole, current-dependent
PvidW0
Equipment heat dissipation, current-dependent
PvidW0
Static heat dissipation, non-current-dependent
PvsW3.4
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C55
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Meets the product standard's requirements.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Approvals
North America Certification  Request filed for UL and CSA
Specially designed for North America  No
Current Limiting Circuit-Breaker  No
Degree of Protection  IEC: IP20, UL/CSA Type: -
Dimensions
MN05002003Z (AWB2724-1614), CAN-digital modules EC4E

>
>>

Datasheet - PDF
