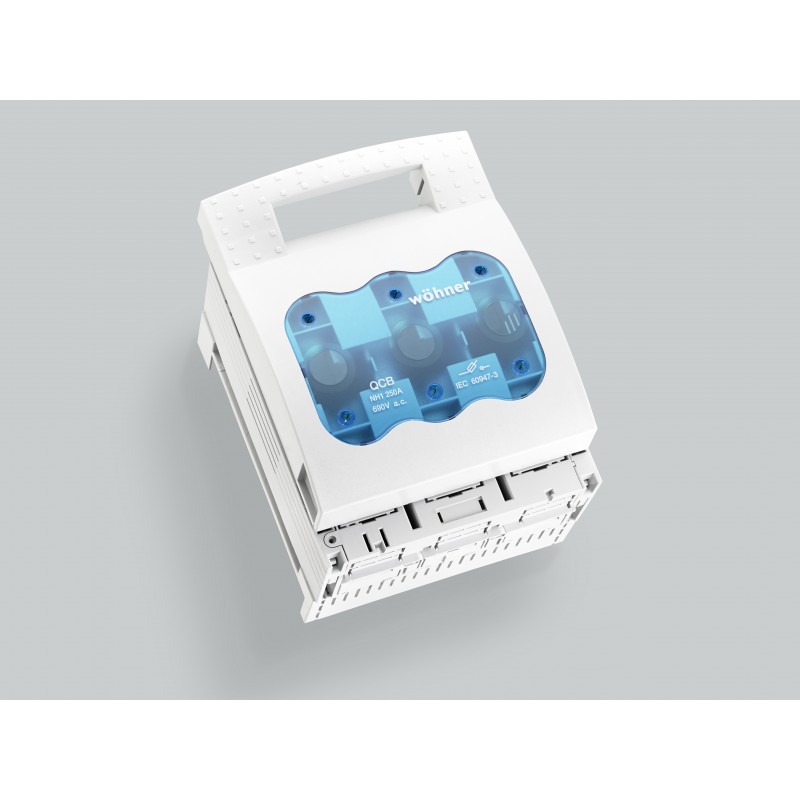

33600 WÖHNER NH 1, 250A fuse disconnector, terminal, up/down connection, sist. 60 mm
33600
WÖHNER
NH 1, 250A fuse disconnector, terminal, up/down connection, sist. 60 mm
NH fuse switch-disconnector size 1, 250 A, busbar mounted, connection top / bottom (33600)
Home > WÖHNER
Brand new product in its original packaging covered by the warranties and certifications provided by WÖHNER
Best sellers
▲More info
▲Part No.: 33600
QUADRON®60Classic
NH fuse switch-disconnector size 1, 250 A, busbar mounted, connection top / bottom
box terminal
with CrossLink®Technology
for busbars12, 15, 20, 25, 30 x 5, 10 and section busbars
System
60Classic
| Product group | 09 |
| Subgroup | 27 |
| pack size | 1 |
| EAN | 4021267336004 |
Advantages of the product
CrossLink® adapter technology
Fast and safe conversion of the connection for top or bottom; the parts under voltage remain shock protected
Simple and safe clicking into place and making contact
Safe connection through shock protection split into two
Busbar supports for flat busbars can be mounted above each other
Self-closing test holes are available in the cover.
| Katalogseite US | US 2020 : 3.17 |
| eCl@ss 6.1 | 27142108 |
| eCl@ss 7.1 | 27142108 |
| ETIM 4.0 | EC001040 |
| ETIM 5.0 | EC001040 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WOEHNER EN.pdf | 5 Mbytes |
|
