33555
WÖHNER
1

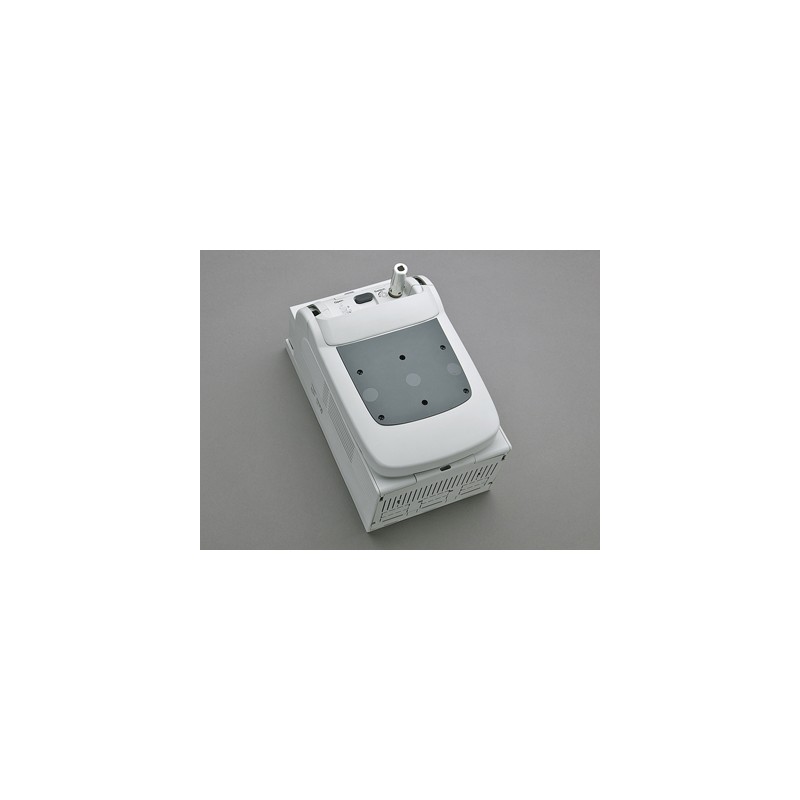

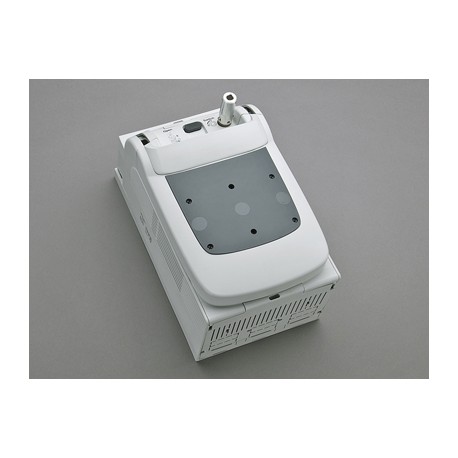

QUADRON panel, load cut switch, door control version, 320A, board mount, M10 screw
switch disconnector 3-pole (33555)
Home > WÖHNER
Brand new product in its original packaging covered by the warranties and certifications provided by WÖHNER
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Part No.: 33555
QUADRON®Panel Speed
switch disconnector 3-pole
screw M10, for door coupling rotary handle
320 A
System
Mounting plate
| Product group | 14 |
| Subgroup | 06 |
| pack size | 1 |
| EAN | 4021267335557 |
Advantages of the product
With spring-controlled switch mechanism for frequent switching as per utilisation category "A"
Lockable in neutral position with up to 3 padlocks
FLAG indicator shows the switch setting
double-breaking main contacts
Can be used as a mains disconnector as per IEC / EN 60204-1 (main switch)
Can also be used as an Emergency Off switch in combination with the red/yellow door coupling twist handle
Main switch only in combination with utilisation category AC-23A/B
AC-23B (400V/280A), AC-23B (690V/250A)
Switches can be installed 90° left/right horizontal, always with the same switch handle position
| catalog page | 2020 : 6.17 |
| eCl@ss 6.1 | 27371403 |
| eCl@ss 7.1 | 27371403 |
| ETIM 4.0 | EC000216 |
| ETIM 5.0 | EC000216 |
| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WOEHNER EN.pdf | 5 Mbytes |
|
