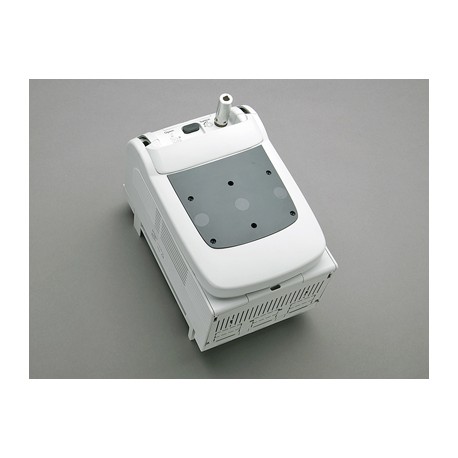

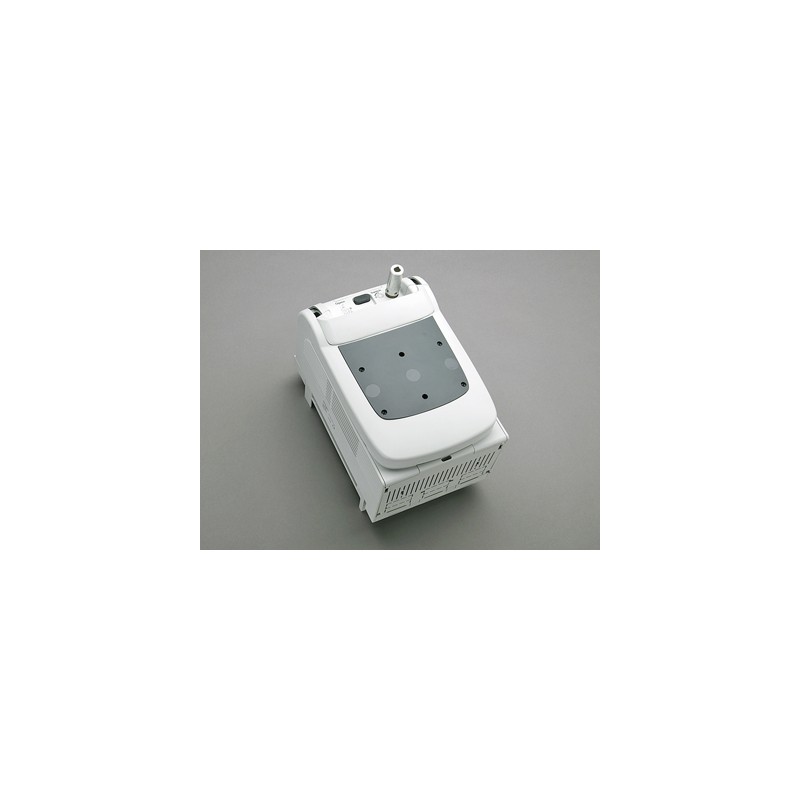

33553 WÖHNER QUADRON 60Classic, load cut switch, door control version, exit down, 320A, sist. 60mm
33553
WÖHNER
QUADRON 60Classic, load cut switch, door control version, exit down, 320A, sist. 60mm
switch-disconnector 3-pole (33553)
Home > WÖHNER
Brand new product in its original packaging covered by the warranties and certifications provided by WÖHNER
Best sellers
▲More info
▲Part No.: 33553
QUADRON®60Classic Speed
switch-disconnector 3-pole
screw M10, connection bottom, for door coupling rotary handle
320 A
for busbars12, 15, 20, 25, 30 x 5, 10 and section busbars
System
60Classic
| Product group | 14 |
| Subgroup | 23 |
| pack size | 1 |
| EAN | 4021267335533 |
Advantages of the product
With spring-controlled switch mechanism for frequent switching as per utilisation category "A"
Lockable in neutral position with up to 3 padlocks
FLAG indicator shows the switch setting
double-breaking main contacts
Can be used as a mains disconnector as per IEC / EN 60204-1 (main switch)
Can also be used as an Emergency Off switch in combination with the red/yellow door coupling twist handle
Main switch only in combination with utilisation category AC-23A/B
AC-23B (400V/280A), AC-23B (690V/250A)
CrossLink® adapter technology
Simple and safe clicking into place and making contact
Busbar supports can be mounted above each other for flat busbars
Switches can be installed 90° left/right horizontal, always with the same switch handle position
| catalog page | 2020 : 3.27 |
| eCl@ss 6.1 | 27371403 |
| eCl@ss 7.1 | 27371403 |
| ETIM 4.0 | EC000216 |
| ETIM 5.0 | EC000216 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WOEHNER EN.pdf | 5 Mbytes |
|
