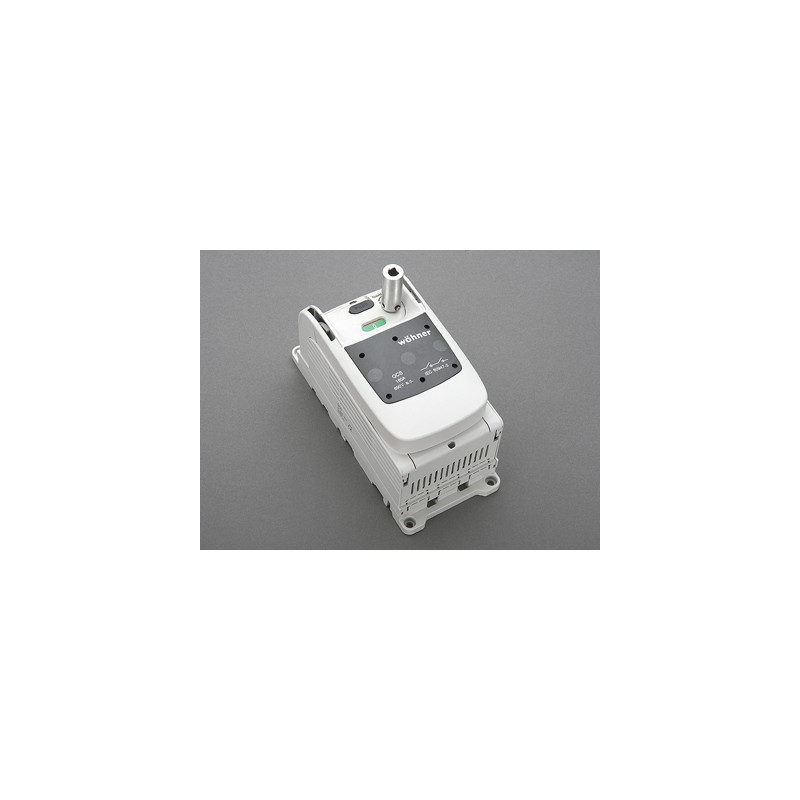

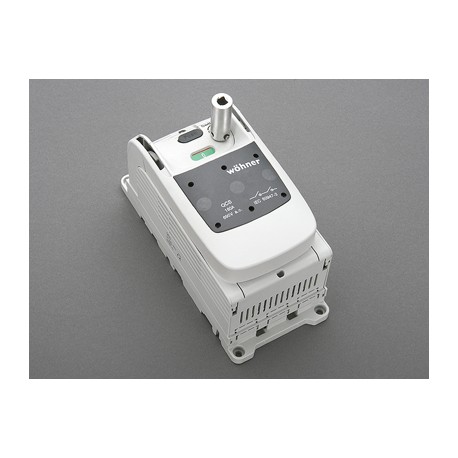

33545 WÖHNER QUADRON Panel, load cut switch, 160A, 3p, door control version, board mount
33545
WÖHNER
QUADRON Panel, load cut switch, 160A, 3p, door control version, board mount
switch-disconnector 3-pole (33545)
Home > WÖHNER
Brand new product in its original packaging covered by the warranties and certifications provided by WÖHNER
Best sellers
▲More info
▲Part No.: 33545
QUADRON®Panel Speed
switch-disconnector 3-pole
box terminal, for door coupling twist handle
160 A
System
Mounting plate
| Product group | 14 |
| Subgroup | 02 |
| pack size | 1 |
| EAN | 4021267335458 |
Advantages of the product
With spring-controlled switch mechanism for frequent switching as per utilisation category "A"
Lockable in neutral position with up to 3 padlocks
FLAG indicator shows the switch setting
double-breaking main contacts
Can be used as a mains disconnector as per IEC / EN 60204-1 (main switch)
Can also be used as an Emergency Off switch in combination with the red/yellow door coupling twist handle
Main switch and Emergency Off only in combination with AC-23A/B
AC-23B (690V/125A), AC-23A (500V/125A)
Switches can be installed 90° left/right horizontal, always with the same switch handle position
Compact dimensions (106mm wide)
| catalog page | 2020 : 6.17 |
| eCl@ss 6.1 | 27371403 |
| eCl@ss 7.1 | 27371403 |
| ETIM 4.0 | EC000216 |
| ETIM 5.0 | EC000216 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WOEHNER EN.pdf | 5 Mbytes |
|
