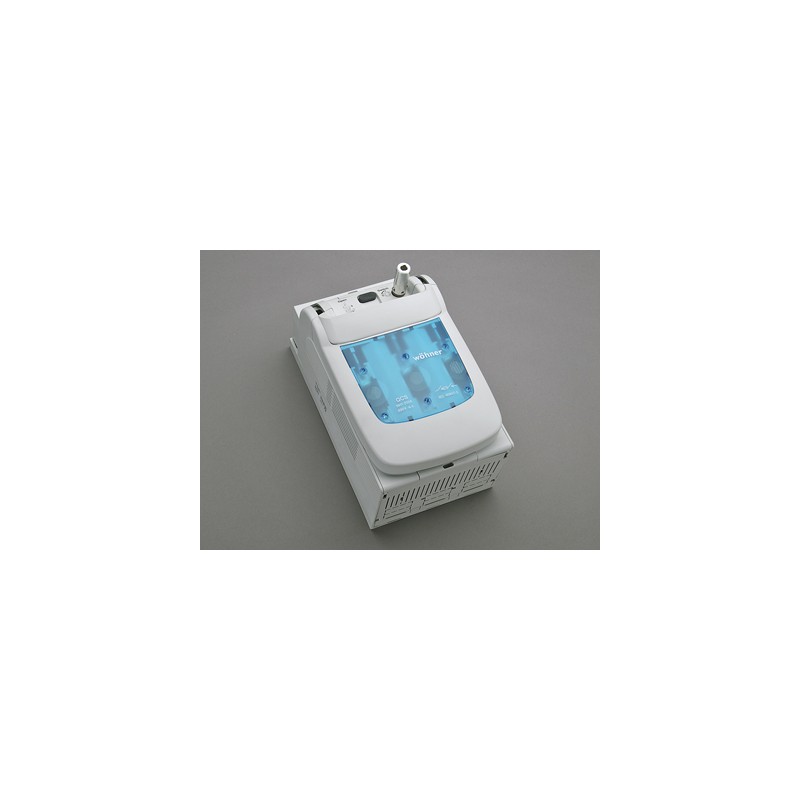

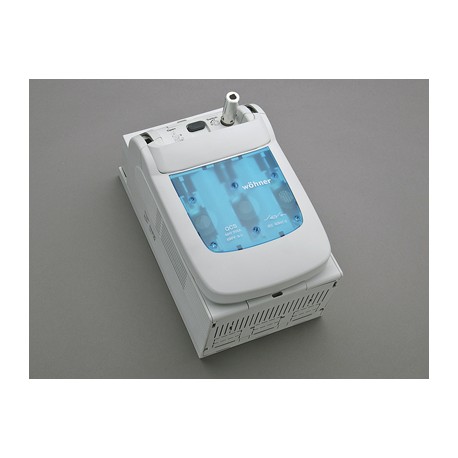

33515 WÖHNER QUADRON Panel, load cut switch, with NH1, 250A fuses, door control version, board mount
33515
WÖHNER
QUADRON Panel, load cut switch, with NH1, 250A fuses, door control version, board mount
switch disconnector with fuses, 3-pole (33515)
Home > WÖHNER
Brand new product in its original packaging covered by the warranties and certifications provided by WÖHNER
Best sellers
▲More info
▲Part No.: 33515
QUADRON®Panel Speed
switch disconnector with fuses, 3-pole
screw M10, for door coupling rotary handle
size 1
System
Mounting plate
| Product group | 15 |
| Subgroup | 06 |
| pack size | 1 |
| EAN | 4021267335151 |
Advantages of the product
With spring-controlled switch mechanism for frequent switching as per utilisation category "A"
FLAG indicator shows the switch setting
Fuses can be changed safely and without tools thanks to double-breaking main contacts
Additional visible separating section by removing the cover incl. fuses
Can be used as mains disconnector as per IEC / EN 60204-1 (main switch)
Also as an Emergency Off switch in combination with the red-yellow door coupling twist handle
Switches can be installed 90° left/right horizontal, always with the same switch lug position
| catalog page | 2020 : 6.17 |
| eCl@ss 6.1 | 27371401 |
| eCl@ss 7.1 | 27371401 |
| ETIM 4.0 | EC001040 |
| ETIM 5.0 | EC001040 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WOEHNER EN.pdf | 5 Mbytes |
|
