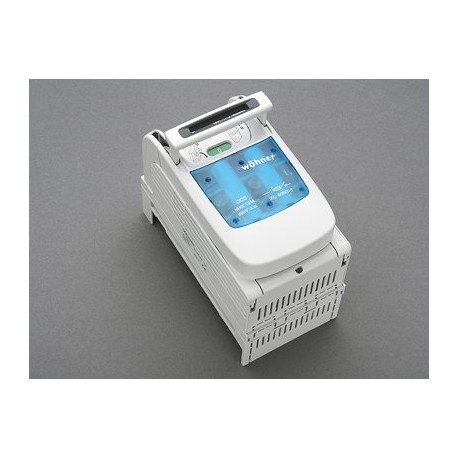

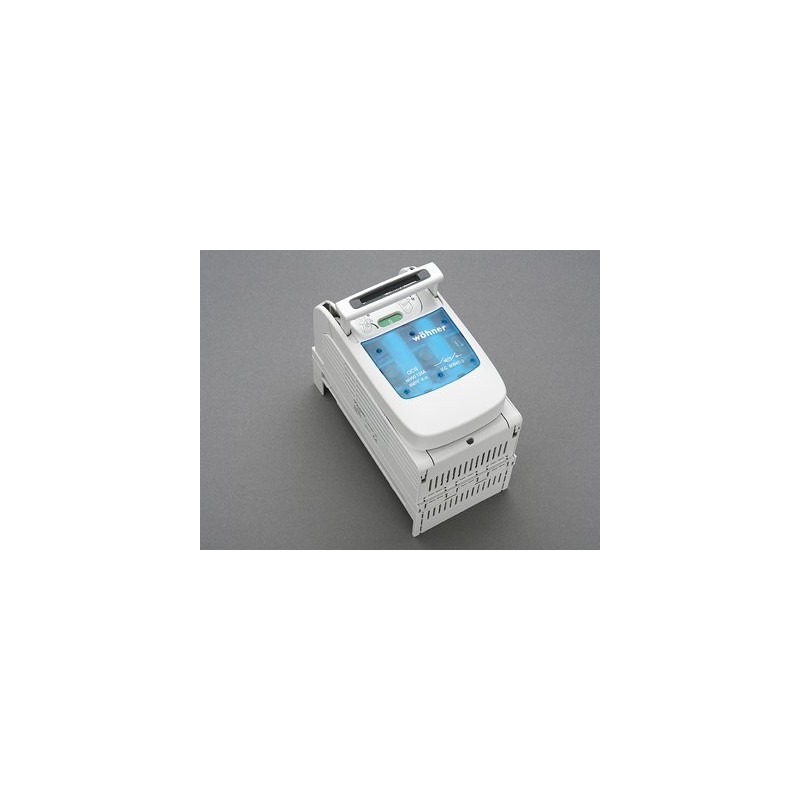

QUADRON 60Classic, load cut switch, NH00, 3p, 125A, connection down, sist. 60mm
switch disconnector with fuses, 3-pole (33500)
Home > WÖHNER
* Brand new product in its original packaging covered by the warranties and certifications provided by WÖHNER
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Part No.: 33500
QUADRON®60Classic Speed
switch disconnector with fuses, 3-pole
box terminal, connection bottom
size 00
for busbars12, 15, 20, 25, 30 x 5, 10 and section busbars
System
60Classic
Product group | 15 |
Subgroup | 20 |
pack size | 1 |
EAN | 4021267335007 |
Advantages of the product
With spring-controlled switch mechanism for frequent switching as per utilisation category "A"
Can be locked in neutral position with up to 3 padlocks
FLAG indicator shows the switch setting
Fuses can be changed safely and without tools thanks to double-breaking main contacts
Additional visible separating section by removing the cover incl. fuses
Can be used as mains disconnector as per IEC / EN 60204-1 (main switch).
Mains switch only in combination with AC-23A/B
CrossLink® adapter technology
Simple and safe clicking into place and making contact
Busbar supports can be mounted above each other for flat rails
Compact dimensions (106mm wide)
catalog page | 2020 : 3.26 |
eCl@ss 6.1 | 27371401 |
eCl@ss 7.1 | 27371401 |
ETIM 4.0 | EC001040 |
ETIM 5.0 | EC001040 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE WOEHNER EN.pdf | 10 Mbytes |
