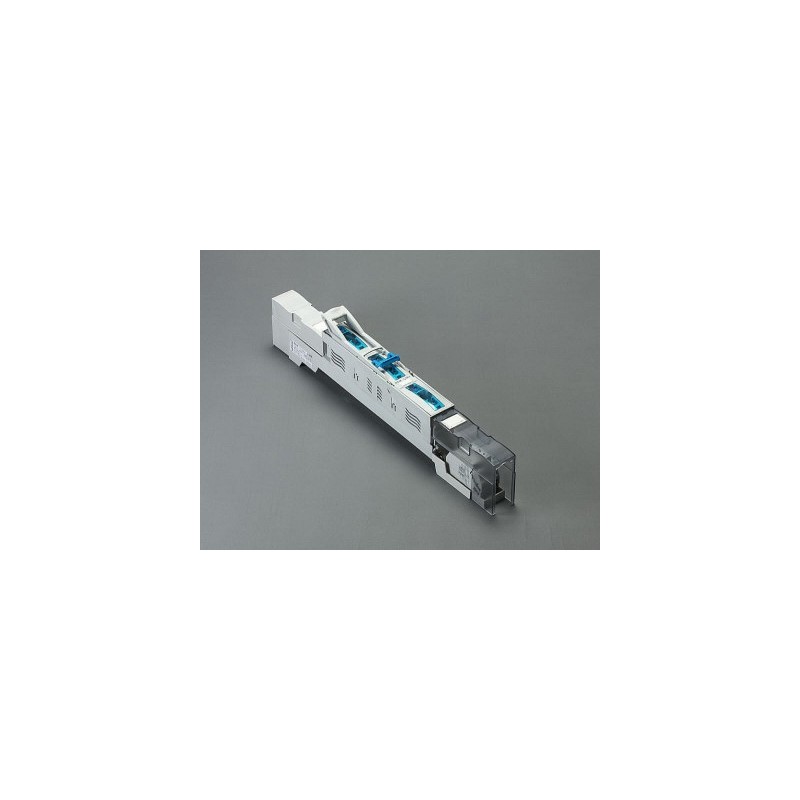

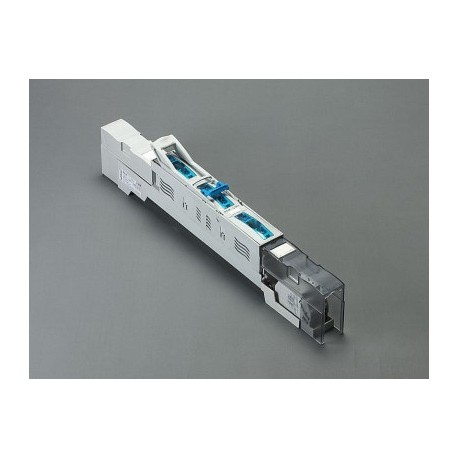

33286 WÖHNER Secur LeanStreamer, size 00, 160 A Sis. 100mm with disp. Fusion electronic
33286
WÖHNER
Secur LeanStreamer, size 00, 160 A; Sis. 100mm with disp. Fusion electronic
in-line fuse switch-disconnector 160 A (33286)
Home > WÖHNER
Brand new product in its original packaging covered by the warranties and certifications provided by WÖHNER
Best sellers
▲More info
▲Part No.: 33286
in-line fuse switch-disconnector 160 A
screw M8 / clamp 70mm², with electron. fuse monitoring
size 00
for busbars30, 40, 50, 60 x 10
particular article
System
100Energy
185mm-System
| Product group | 12 |
| Subgroup | 51 |
| pack size | 1 |
| EAN | 4021267332860 |
Advantages of the product
Self-closing inspection holes are available in the cover.
Electronic fuse monitoring:
operating current principle, optionally with latching properties (latches without bridge X1-X2)
device display:
green LED = intact fuses
red LED = fuse tripped, cover position up
| catalog page | 2015 : 3.2 |
| eCl@ss 6.1 | 27142108 |
| eCl@ss 7.1 | 27142108 |
| ETIM 4.0 | EC001046 |
| ETIM 5.0 | EC001046 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WOEHNER EN.pdf | 5 Mbytes |
|
