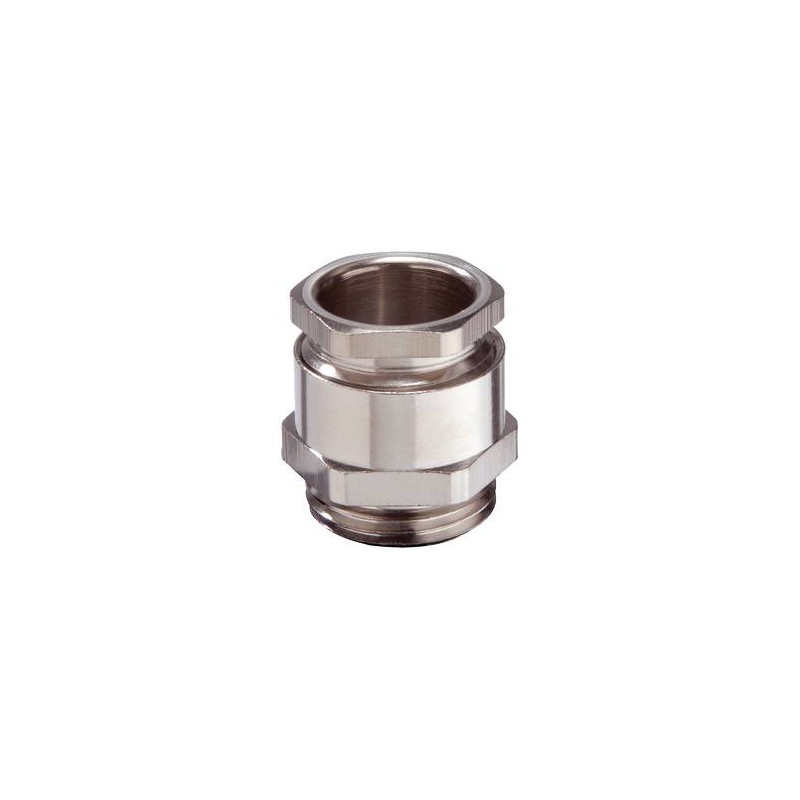

SMKV 13,5 10062084 WISKA Metal hexagonal cable glands, IP54, range from 6.5 to 13.5mm, PG 13 thread
SMKV 13,5
10062084
WISKA
50
Metal hexagonal cable glands, IP54, range from 6.5 to 13.5mm, PG 13 thread
Cable gland hexagonal, brass nickel-plated, Pg 13,5 with short thread
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | Soft rubber |
| Temp. range min | -40 °C |
| Temp. range max | 70 °C |
| Protection class | IP54 |
| Thread type | PG |
| Ø Connection thread D | 13,5 |
| Length screw-in thread L | 6,5 mm |
| Ø cable diameter min | 6,5 mm |
| Ø cable diameter max | 13,5 mm |
| Key width SW1 | 20 mm |
| Key width SW2 | 22 mm |
| Collar diameter E1 | 22 mm |
| Collar diameter E2 | 24 mm |
| Total length TL | 26 mm |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10062084 |
| Type | SMKV 13,5 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| SMKV 13,5 10062084 EN_10062084.pdf | 262 Kbytes |
|
