SKVS 7/GL
10060615
WISKA
100
Light grey RAL 7035 cable glands, PA IP68, flexible protection input range from 3.0 to 6.5mm, pg.07 thread

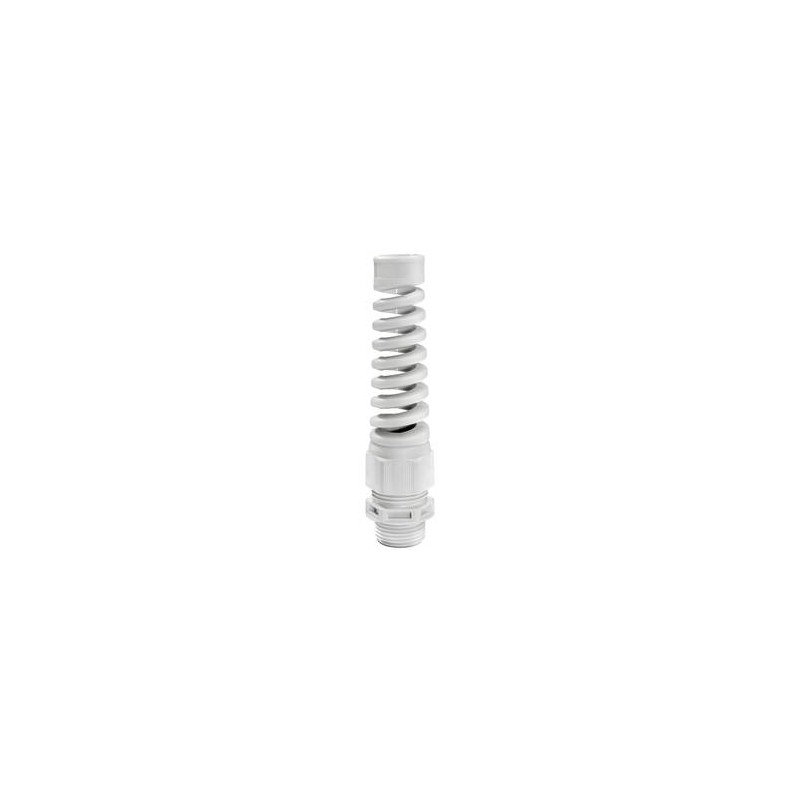

Cable gland with bend protection, polyamide, Pg 7, RAL 7035
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Material cable gland | Polyamide |
Material sealing gasket | EPDM |
Protection class | IP69, IP68 (5 bar 30 min) |
Temp. range min | -20 °C |
Temp. range max | 80 °C |
Glow wire test | 750 °C |
Thread type | PG |
Ø Connection thread D | 7 |
Length screw-in thread L | 8 mm |
Ø cable diameter min | 3 mm |
Ø cable diameter max | 6,5 mm |
Key width SW | 15 mm |
Collar diameter (E) | 16 mm |
Total length TL | 68 mm |
Type of cable anchorage | A |
Product Color | RAL 7035 |
Type | SKVS 7 |
Order no. RAL 7035 | 10060615 |
Packing unit | 100 |
ETIM-Classification | EC000441 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
![]() |
SKVS 7/GL 10060615 EN_10060615.pdf | 315 Kbytes |
![]() |
