SKVS 11/B 10061873 WISKA Black cable glands RAL 9005, PA IP68, input flexible protection range from 5.0 to 1..
SKVS 11/B
10061873
WISKA
50
Black cable glands RAL 9005, PA IP68, input flexible protection range from 5.0 to 10.0mm, pg.11 thread

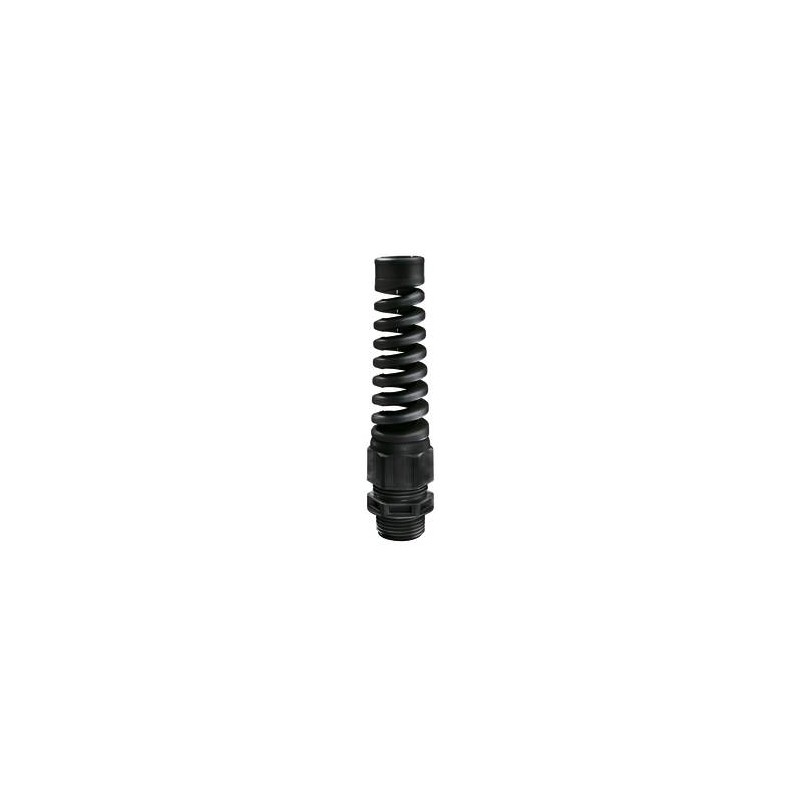

Cable gland with bend protection, polyamide, Pg 11, RAL 9005
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Temp. range min | -20 °C |
| Temp. range max | 80 °C |
| Glow wire test | 750 °C |
| Thread type | PG |
| Ø Connection thread D | 11 |
| Length screw-in thread L | 8 mm |
| Ø cable diameter min | 5 mm |
| Ø cable diameter max | 10 mm |
| Key width SW | 22 mm |
| Collar diameter (E) | 24 mm |
| Total length TL | 92 mm |
| Type of cable anchorage | A |
| Product Color | RAL 9005 |
| Type | SKVS 11 |
| Order no. RAL 9005 | 10061873 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| SKVS 11/B 10061873 EN_10061873.pdf | 414 Kbytes |
|
