SKMKV 48 10062140 WISKA Metal hexagonal cable glands + IP54 flange clamping, range from 35.0 to 46.0mm, pg.4..
SKMKV 48
10062140
WISKA
5
Metal hexagonal cable glands + IP54 flange clamping, range from 35.0 to 46.0mm, pg.48 thread

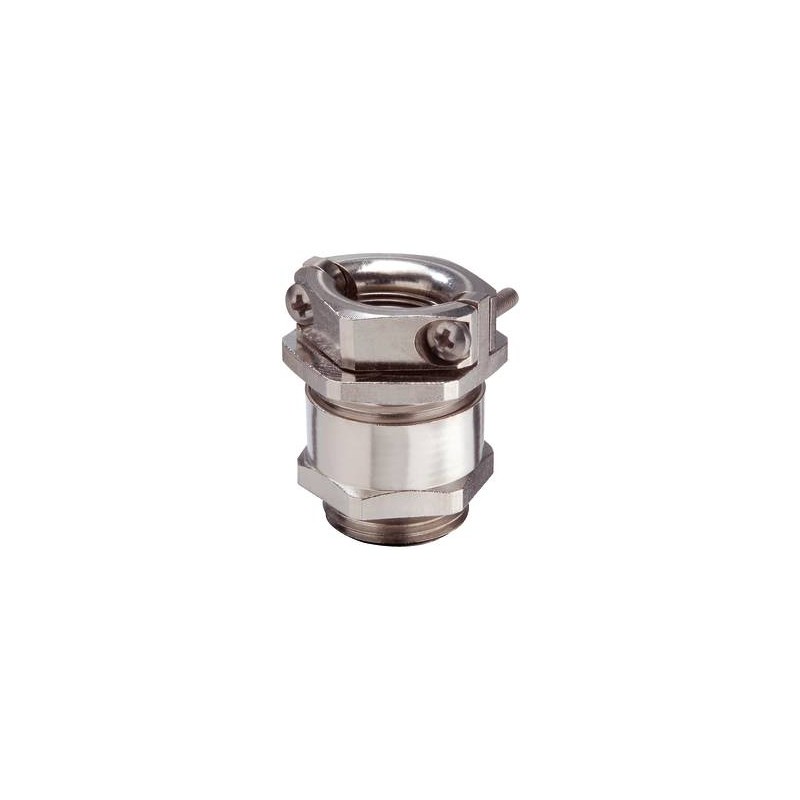

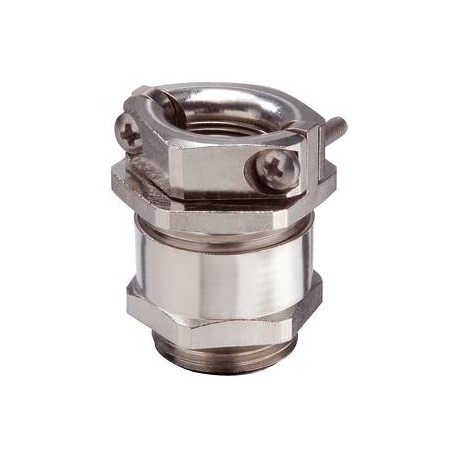

Cable gland hexagonal, brass nickel-plated, Pg 48 with external strain relief
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | Soft rubber |
| Temp. range min | -40 °C |
| Temp. range max | 70 °C |
| Protection class | IP54 |
| Thread type | PG |
| Ø Connection thread D | 48 |
| Length screw-in thread L | 10 mm |
| Ø cable diameter min | 35 mm |
| Ø cable diameter max | 46 mm |
| Key width SW1 | 64 mm |
| Key width SW2 | 64 mm |
| Collar diameter E1 | 70 mm |
| Collar diameter E2 | 70 mm |
| Total length TL | 53 mm |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10062140 |
| Type | SKMKV 48 |
| Packing unit | 5 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| SKMKV 48 10062140 EN_10062140.pdf | 285 Kbytes |
|
