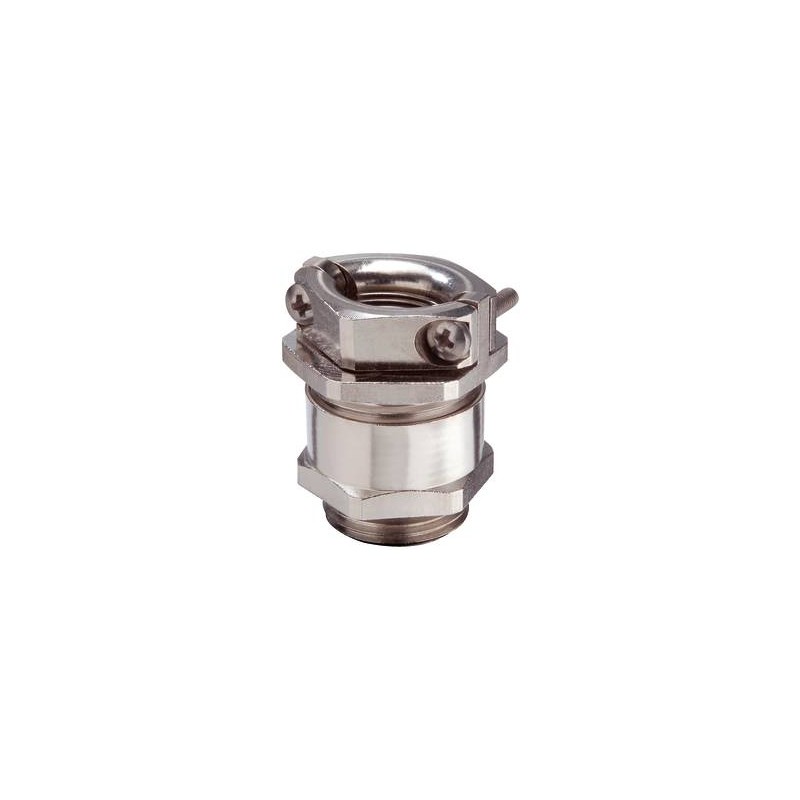

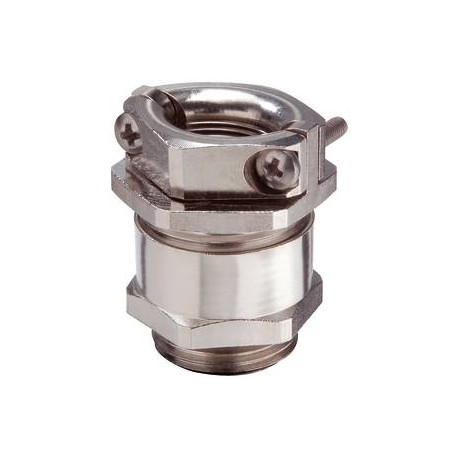

SKMKV 42 10062139 WISKA Metal hexagonal cable glands + IP54 flange clamping, range from 29.0 to 40.0mm, pg.4..
SKMKV 42
10062139
WISKA
10
Metal hexagonal cable glands + IP54 flange clamping, range from 29.0 to 40.0mm, pg.42 thread
Cable gland hexagonal, brass nickel-plated, Pg 42 with external strain relief
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | Soft rubber |
| Temp. range min | -40 °C |
| Temp. range max | 70 °C |
| Protection class | IP54 |
| Thread type | PG |
| Ø Connection thread D | 42 |
| Length screw-in thread L | 10 mm |
| Ø cable diameter min | 29 mm |
| Ø cable diameter max | 40 mm |
| Key width SW1 | 59 mm |
| Key width SW2 | 57 mm |
| Collar diameter E1 | 65 mm |
| Collar diameter E2 | 63 mm |
| Total length TL | 53 mm |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10062139 |
| Type | SKMKV 42 |
| Packing unit | 5 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| SKMKV 42 10062139 EN_10062139.pdf | 284 Kbytes |
|
