SKMKV 29 10062137 WISKA Metal hexagonal cable glands + IP54 flange clamping, range from 17.0 to 28.0mm, pg.2..
SKMKV 29
10062137
WISKA
25
Metal hexagonal cable glands + IP54 flange clamping, range from 17.0 to 28.0mm, pg.29 thread

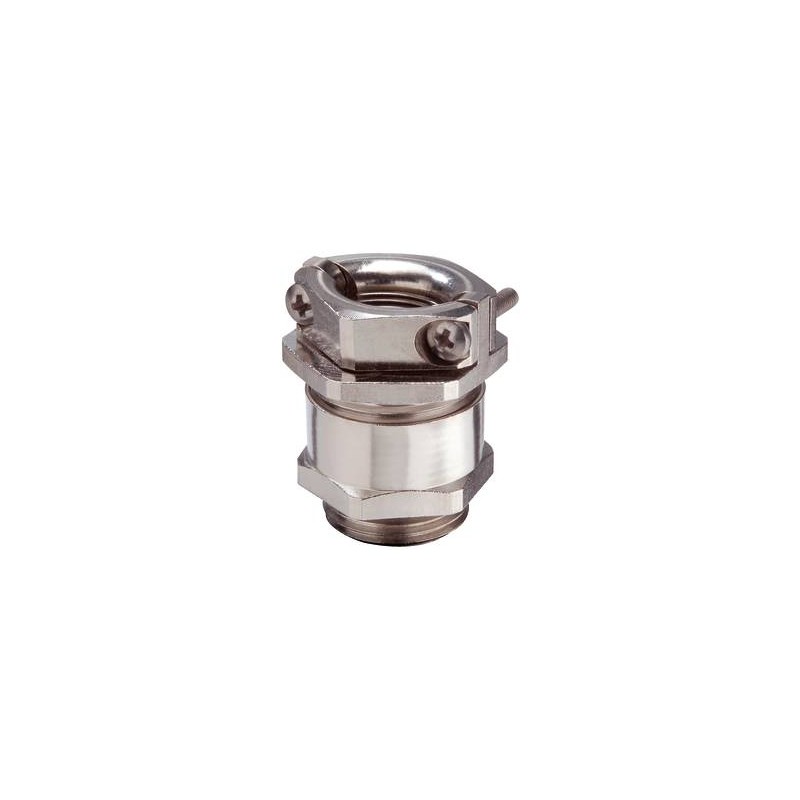

Cable gland hexagonal, brass nickel-plated, Pg 29 with external strain relief
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | Soft rubber |
| Temp. range min | -40 °C |
| Temp. range max | 70 °C |
| Protection class | IP54 |
| Thread type | PG |
| Ø Connection thread D | 29 |
| Length screw-in thread L | 8 mm |
| Ø cable diameter min | 17 mm |
| Ø cable diameter max | 28 mm |
| Key width SW1 | 42 mm |
| Key width SW2 | 40 mm |
| Collar diameter E1 | 46 mm |
| Collar diameter E2 | 44 mm |
| Total length TL | 43 mm |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10062137 |
| Type | SKMKV 29 |
| Packing unit | 25 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG WISKA CABLE ENTRIES AND PROTECTION EN.pdf | 8 Mbytes |
|
| PDF CATALOG WISKA JUCTION BOXES EN.pdf | 3 Mbytes |
|
| PDF CATALOG WISKA LIGHTING INSTALLATION AND MARITIME APP EN.pdf | 5 Mbytes |
|
| SKMKV 29 10062137 EN_10062137.pdf | 285 Kbytes |
|
