SKMKV 21 10062136 WISKA Metal hexagonal cable glands + IP54 flange clamping, range from 9.0 to 20.0mm, pg.21..
SKMKV 21
10062136
WISKA
25
Metal hexagonal cable glands + IP54 flange clamping, range from 9.0 to 20.0mm, pg.21 thread

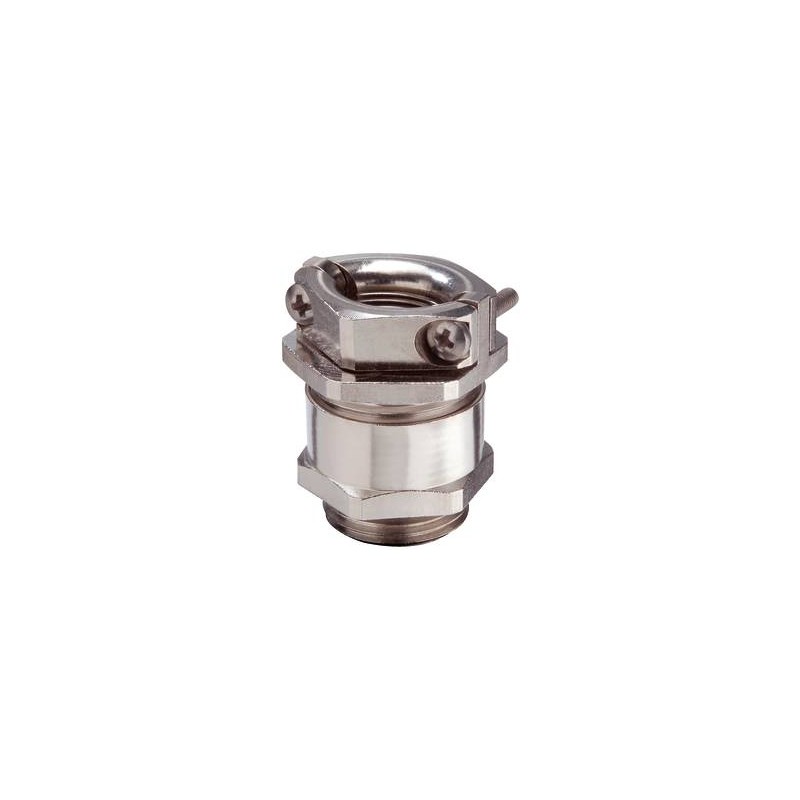

Cable gland hexagonal, brass nickel-plated, Pg 21 with external strain relief
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | Soft rubber |
| Temp. range min | -40 °C |
| Temp. range max | 70 °C |
| Protection class | IP54 |
| Thread type | PG |
| Ø Connection thread D | 21 |
| Length screw-in thread L | 7 mm |
| Ø cable diameter min | 9 mm |
| Ø cable diameter max | 20 mm |
| Key width SW1 | 34 mm |
| Key width SW2 | 30 mm |
| Collar diameter E1 | 37 mm |
| Collar diameter E2 | 33 mm |
| Total length TL | 39 mm |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10062136 |
| Type | SKMKV 21 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| SKMKV 21 10062136 EN_10062136.pdf | 284 Kbytes |
|
