SKMKV 11 10062133 WISKA Metal hexagonal cable glands + IP54 flange clamping, range from 6.5 to 13.5mm, pg.11..
SKMKV 11
10062133
WISKA
50
Metal hexagonal cable glands + IP54 flange clamping, range from 6.5 to 13.5mm, pg.11 thread

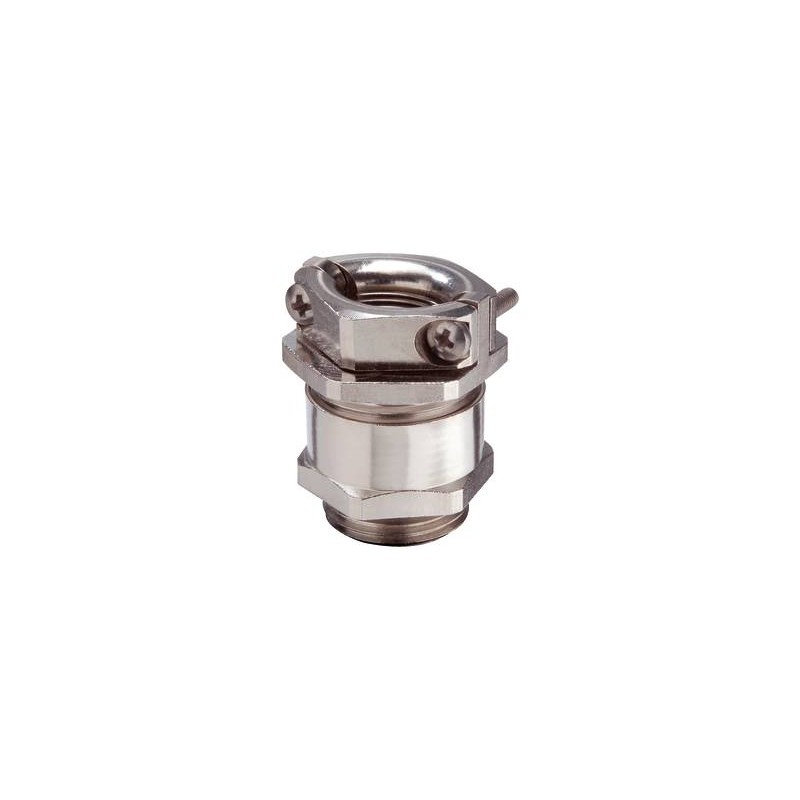

Cable gland hexagonal, brass nickel-plated, Pg 11 with external strain relief
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | Soft rubber |
| Temp. range min | -40 °C |
| Temp. range max | 70 °C |
| Protection class | IP54 |
| Thread type | PG |
| Ø Connection thread D | 11 |
| Length screw-in thread L | 6 mm |
| Ø cable diameter min | 6,5 mm |
| Ø cable diameter max | 13,5 mm |
| Key width SW1 | 24 mm |
| Key width SW2 | 20 mm |
| Collar diameter E1 | 27 mm |
| Collar diameter E2 | 22 mm |
| Total length TL | 31 mm |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10062133 |
| Type | SKMKV 11 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| SKMKV 11 10062133 EN_10062133.pdf | 284 Kbytes |
|
