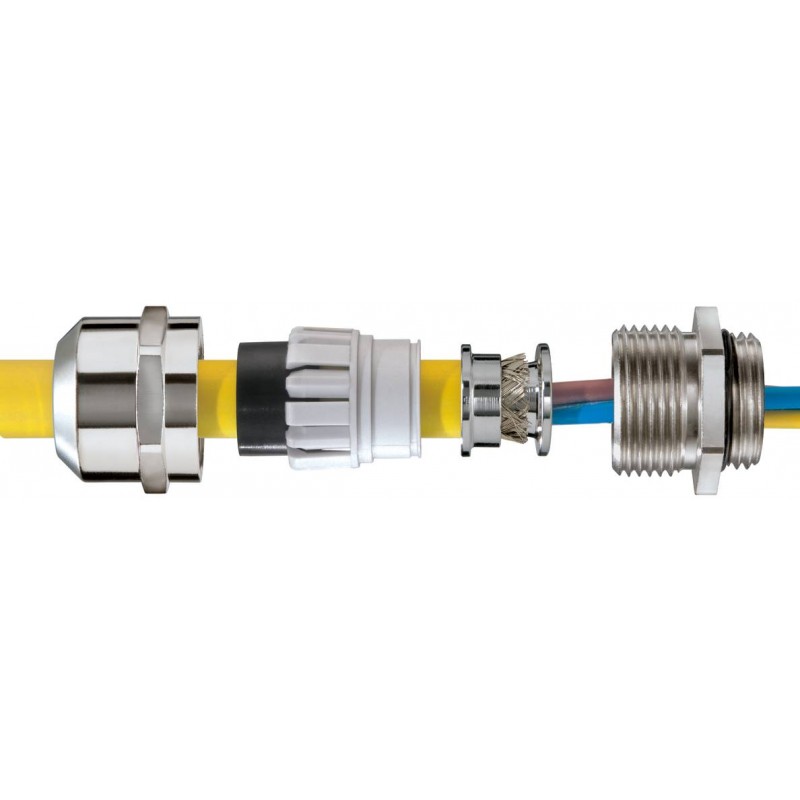

PMSKV 48-63 EMV-Z 10100706 WISKA Metal cable glands with M63 body, IP68 for EMC, range from 34.0mm to 48.0mm..
PMSKV 48-63 EMV-Z
10100706
WISKA
10
Metal cable glands with M63 body, IP68 for EMC, range from 34.0mm to 48.0mm, pg.48 thread
EMC-cable gland, brass nickel-plated, Pg48
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | EPDM |
| Material clamping cage | Polyamide |
| Material earthing insert | Brass chromium-plated |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Thread type | PG |
| Ø Connection thread D | 48 |
| Length screw-in thread L | 10 mm |
| Ø cable diameter min | 34 mm |
| Ø cable diameter max | 48 mm |
| Ø cable below cable shield | 45 mm |
| Key width SW | 68 mm |
| Collar diameter (E) | 75 mm |
| Total length TL | 56 mm - 67 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 40 N m |
| Install. torques cap nut | 40 N m |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10100706 |
| Type | PMSKV 48-63 EMV-Z |
| Packing unit | 10 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| PMSKV 48-63 EMV-Z 10100706 EN_10100706.pdf | 203 Kbytes |
|
