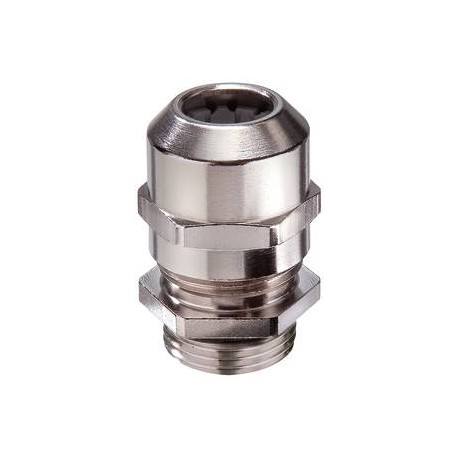

PMSKV 21-32 10100689 WISKA Metal cable glands with M32 body, IP68 range from 13.0mm to 21.0mm, pg.21 thread
PMSKV 21-32
10100689
WISKA
100
Metal cable glands with M32 body, IP68 range from 13.0mm to 21.0mm, pg.21 thread
Cable gland, brass nickel-plated, Pg 21
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Thread type | PG |
| Ø Connection thread D | 21 |
| Length screw-in thread L | 7 mm |
| Ø cable diameter min | 13 mm |
| Ø cable diameter max | 21 mm |
| Key width SW | 36 mm |
| Collar diameter (E) | 40 mm |
| Total length TL | 39 mm - 47 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 20 N m |
| Install. torques cap nut | 20 N m |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10100689 |
| Type | PMSKV 21-32 |
| Packing unit | 25 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| PMSKV 21-32 10100689 EN_10100689.pdf | 375 Kbytes |
|
