PMSKV 21-25 EMV-Z 10100701 WISKA Metal cable glands with M25 body, IP68 for EMC, range from 9.0mm to 17.0mm,..
PMSKV 21-25 EMV-Z
10100701
WISKA
25
Metal cable glands with M25 body, IP68 for EMC, range from 9.0mm to 17.0mm, pg.21 thread

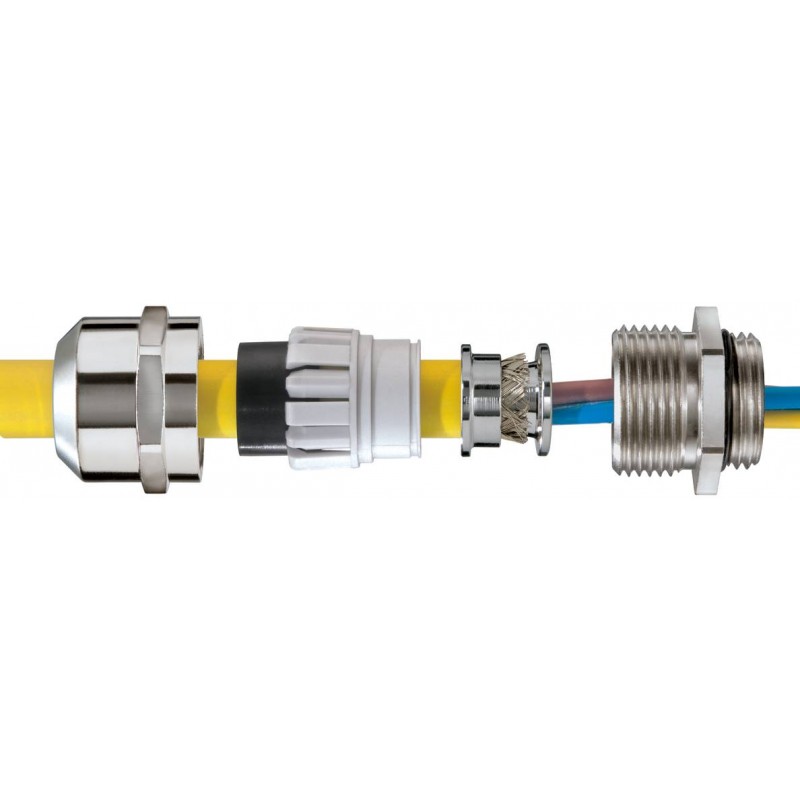

EMC-cable gland, brass nickel-plated, Pg21
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | EPDM |
| Material clamping cage | Polyamide |
| Material earthing insert | Brass chromium-plated |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | PG |
| Ø Connection thread D | 21 |
| Length screw-in thread L | 7 mm |
| Ø cable diameter min | 9 mm |
| Ø cable diameter max | 17 mm |
| Ø cable below cable shield | 16 mm |
| Key width SW | 36 mm |
| Collar diameter (E) | 40 mm |
| Total length TL | 33 mm - 42 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 10 N m |
| Install. torques cap nut | 10 N m |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10100701 |
| Type | PMSKV 21-25 EMV-Z |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| PMSKV 21-25 EMV-Z 10100701 EN_10100701.pdf | 203 Kbytes |
|
