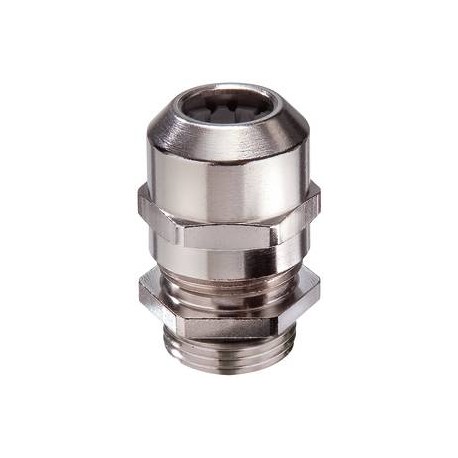

PMSKV 13,5-25 10100491 WISKA Metal cable glands with M25 body, IP68 range from 9.0mm to 17.0mm, pg.13 thread
PMSKV 13,5-25
10100491
WISKA
50
Metal cable glands with M25 body, IP68 range from 9.0mm to 17.0mm, pg.13 thread
Cable gland, brass nickel-plated, Pg 13,5
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Thread type | PG |
| Ø Connection thread D | 13,5 |
| Length screw-in thread L | 6 mm |
| Ø cable diameter min | 9 mm |
| Ø cable diameter max | 17 mm |
| Key width SW | 29 mm |
| Collar diameter (E) | 32 mm |
| Total length TL | 33 mm - 42 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 10 N m |
| Install. torques cap nut | 10 N m |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10100491 |
| Type | PMSKV 13,5-25 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| PMSKV 13,5-25 10100491 EN_10100491.pdf | 376 Kbytes |
|
