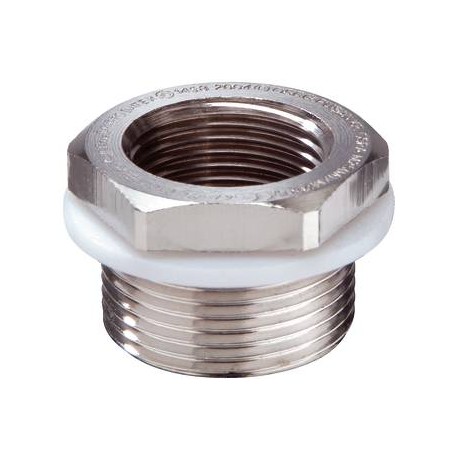

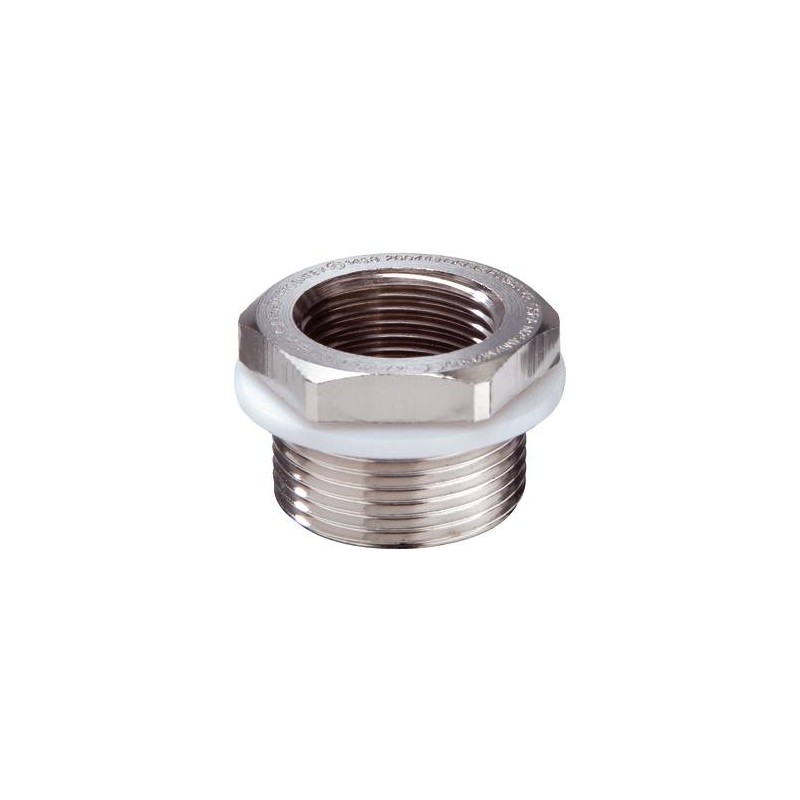

OSRA 63-50 50065664 WISKA Metal reduction "ATEX" IP67 thread ext. M63 int. M50
OSRA 63-50
50065664
WISKA
Metal reduction "ATEX" IP67 thread ext. M63 int. M50
Ex d reduction adaptor, brass nickel-plated, M63-M50
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Brass nickel-plated |
| Temp. range min | -60 °C |
| Temp. range max | 110 °C |
| Protection class | IP66 / IP67 |
| Type of protection | Ex eb, Ex tb, Ex db |
| Ex-Certificate | IECEx, ATEX |
| Thread type outer | M |
| Ø outer thread | 63 |
| Lead outer | 1,5 |
| Length screw-in thread L | 15 mm |
| Thread type inner | M |
| Ø inner thread | 50 |
| Lead inner | 1,5 |
| Key width SW | 68 mm |
| Collar diameter (E) | 72 mm |
| Total length TL | 23 mm |
| Order no. nickel-plated | 50065664 |
| Type | OSRA 63 / M63(M)*M50(F) |
| Packing unit | 1 |
| ETIM-Classification | EC000938 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| OSRA 63-50 50065664 EN_50065664.pdf | 261 Kbytes |
|
