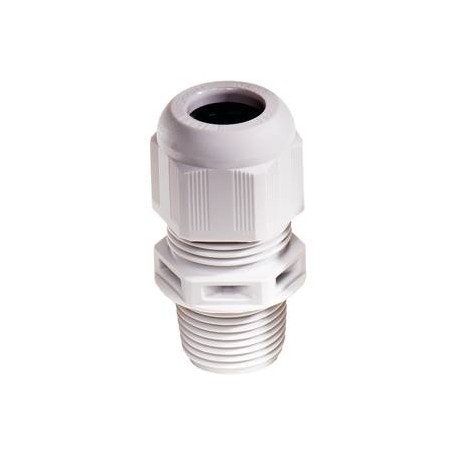

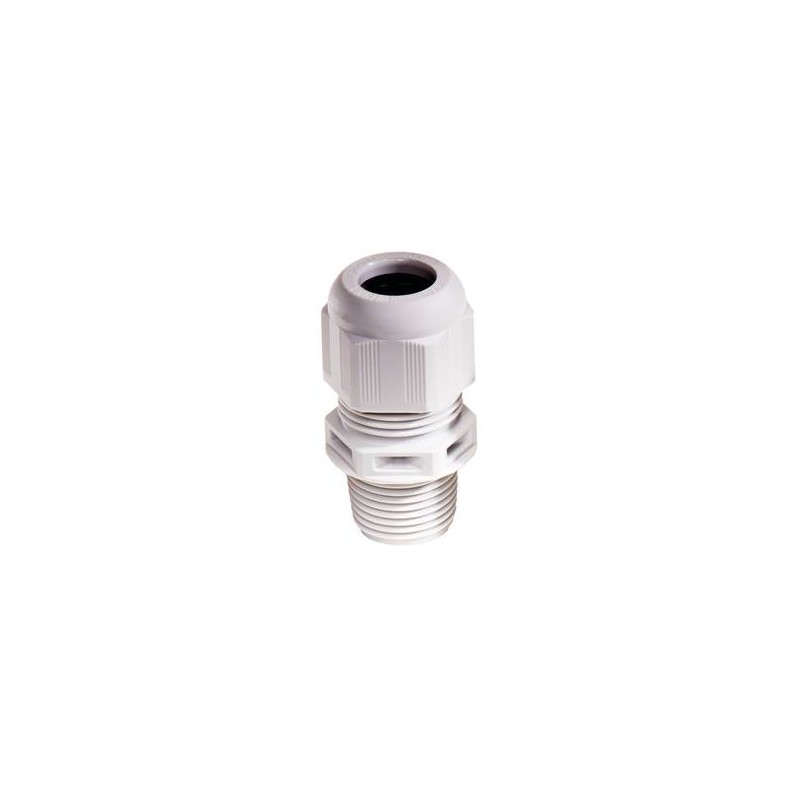

NSKV 3/8/GL 10062656 WISKA PA cable glands, light grey RAL 7035 IP68, range from 4.5mm to 10.0mm, NPT 3/8 th..
NSKV 3/8/GL
10062656
WISKA
50
PA cable glands, light grey RAL 7035 - IP68, range from 4.5mm to 10.0mm, NPT 3/8 thread
Cable gland, polyamide, NPT 3/8", RAL 7035
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | NPT |
| Ø Connection thread D | 3/8" |
| Length screw-in thread L | 15 mm |
| Ø cable diameter min | 4,5 mm |
| Ø cable diameter max | 10 mm |
| Ø cable diameter UL | 6 mm - 8,6 mm |
| Key width SW | 20 mm |
| Collar diameter (E) | 22 mm |
| Total length TL | 35 mm - 41 mm |
| Glow wire test | 750 °C |
| Type of cable anchorage | A |
| Install. torques cap nut | 1,5 N m |
| Install. torques fitting | 3,5 N m |
| Impact category | 2 |
| Product Color | RAL 7035 |
| Order no. RAL 7035 | 10062656 |
| Type | NSKV 3/8 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| NSKV 3/8/GL 10062656 EN_10062656.pdf | 240 Kbytes |
|
