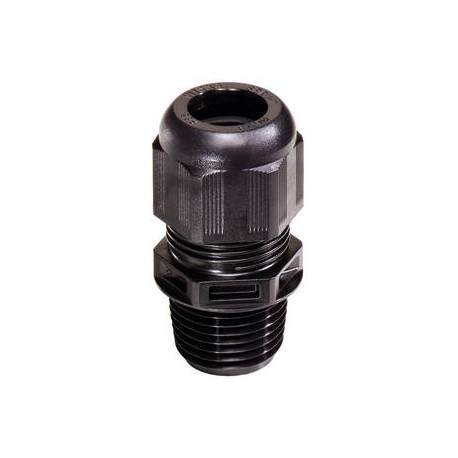

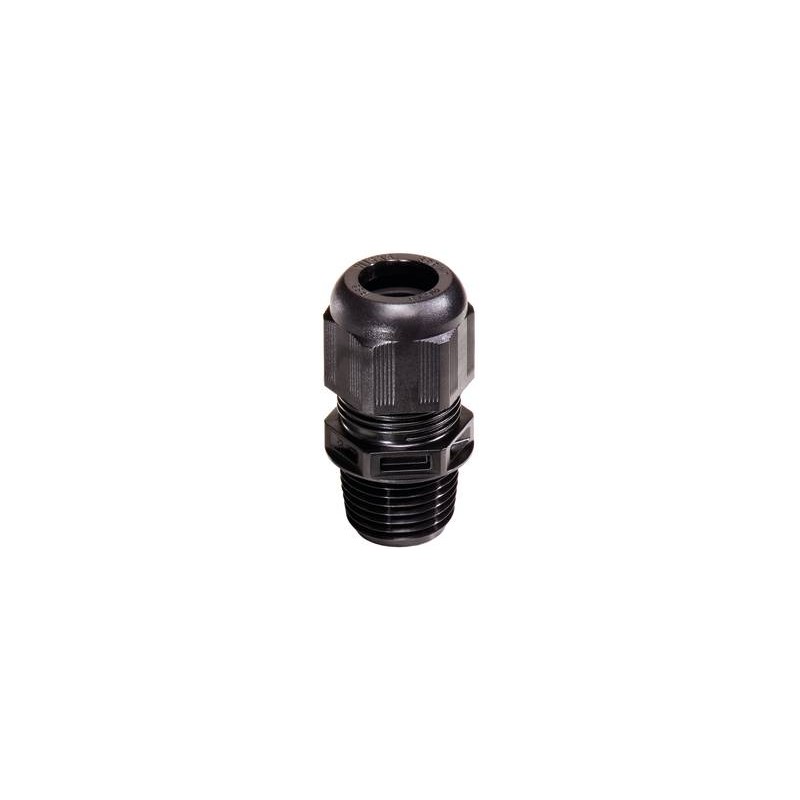

NSKV 1 LT/B 10061862 WISKA PA cable glands, black RAL 9005 IP68 -60oC, range from 13.0mm to 21.0mm, NPT thre..
NSKV 1 LT/B
10061862
WISKA
25
PA cable glands, black RAL 9005 - IP68 -60oC, range from 13.0mm to 21.0mm, NPT thread 1
Cable gland LowTemp, polyamide, NPT 1", RAL 9005
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | Silicone |
| Temp. range min | -60 °C |
| Temp. range max | 100 °C |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | NPT |
| Ø Connection thread D | 1" |
| Length screw-in thread L | 15 mm |
| Ø cable diameter min | 13 mm |
| Ø cable diameter max | 21 mm |
| Key width SW | 36 mm |
| Collar diameter (E) | 40 mm |
| Total length TL | 50 mm - 59 mm |
| Glow wire test | 750 °C |
| Type of cable anchorage | A |
| Install. torques fitting | 15 N m |
| Install. torques cap nut | 4 N m |
| Product Color | RAL 9005 |
| Order no. RAL 9005 | 10061862 |
| Type | NSKV 1 LT |
| Packing unit | 25 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| NSKV 1 LT/B 10061862 EN_10061862.pdf | 362 Kbytes |
|
