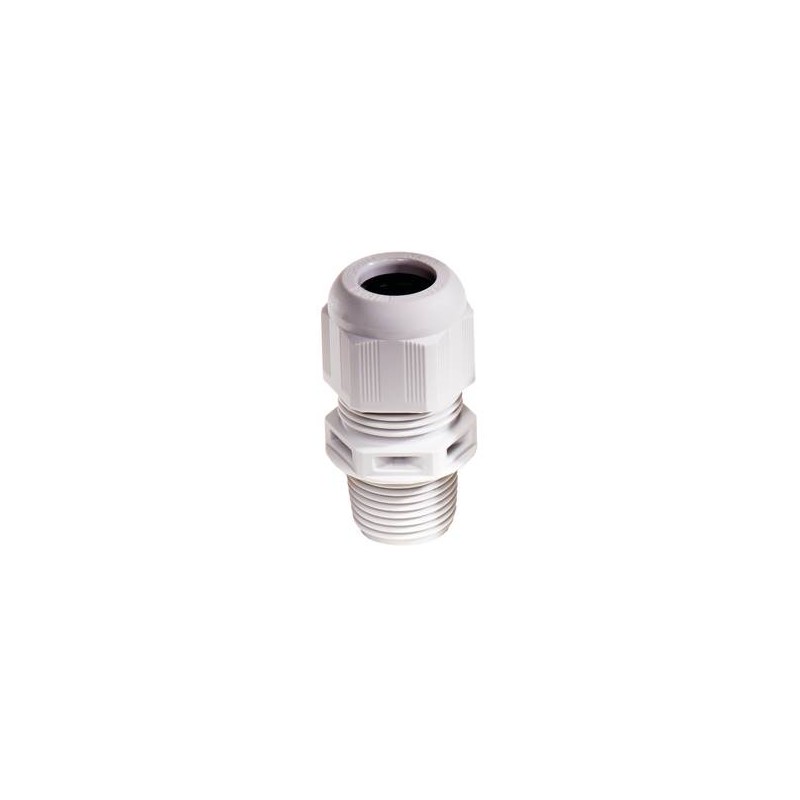

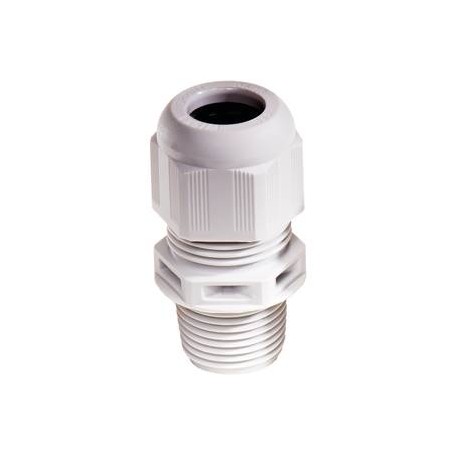

NSKV 1 1/4/GL 10062731 WISKA PA cable glands, dark grey RAL 7001 IP68, range from 16.0mm to 28.0mm, NPT thre..
NSKV 1 1/4/GL
10062731
WISKA
10
PA cable glands, dark grey RAL 7001 - IP68, range from 16.0mm to 28.0mm, NPT thread 1-1/4
Cable gland, polyamide, NPT 1 1/4", RAL 7035
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | NPT |
| Ø Connection thread D | 1 1/4" |
| Length screw-in thread L | 18 mm |
| Ø cable diameter min | 16 mm |
| Ø cable diameter max | 28 mm |
| Ø cable diameter UL | 17,4 mm - 26,4 mm |
| Key width SW | 46 mm |
| Collar diameter (E) | 51 mm |
| Total length TL | 60 mm - 73 mm |
| Glow wire test | 750 °C |
| Type of cable anchorage | A |
| Install. torques cap nut | 20 N m |
| Install. torques fitting | 20 N m |
| Impact category | 4 |
| Product Color | RAL 7035 |
| Order no. RAL 7035 | 10062731 |
| Type | NSKV 1 1/4 |
| Packing unit | 10 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| NSKV 1 1/4/GL 10062731 EN_10062731.pdf | 240 Kbytes |
|
