NMSKV 2 EMV-Z 10065495 WISKA IP68 metal cable glands for EMC, range from 34.0mm to 48.0mm, NPT 2 thread
NMSKV 2 EMV-Z
10065495
WISKA
5
IP68 metal cable glands for EMC, range from 34.0mm to 48.0mm, NPT 2 thread

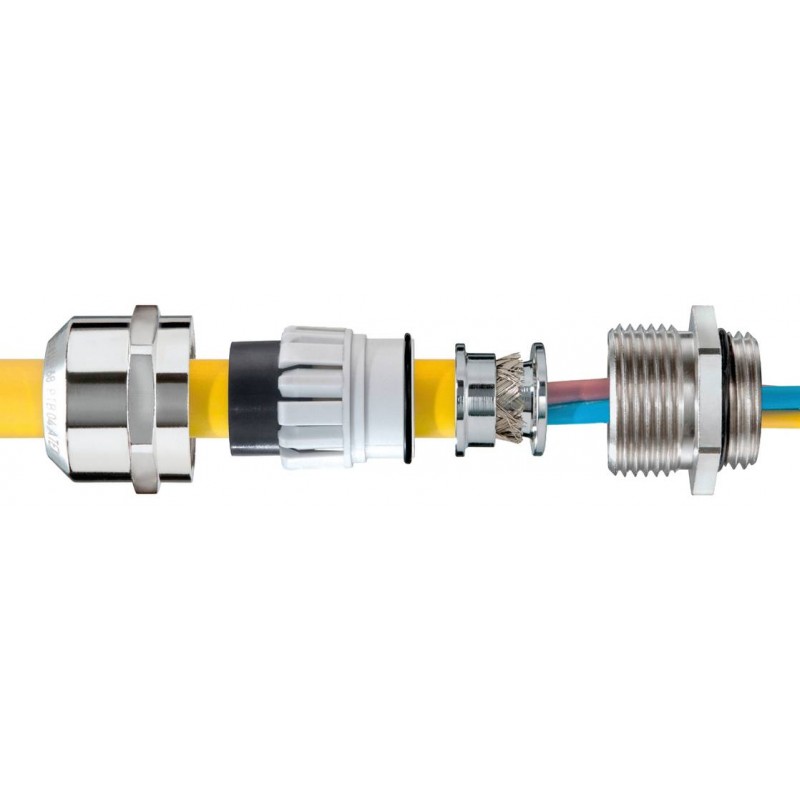

EMC-cable gland, brass nickel-plated, NPT 2"
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | EPDM |
| Material clamping cage | Polyamide |
| Material earthing insert | Brass chromium-plated |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Thread type | NPT |
| Ø Connection thread D | 2" |
| Length screw-in thread L | 21 mm |
| Ø cable diameter min | 34 mm |
| Ø cable diameter max | 48 mm |
| Ø cable below cable shield | 45 mm |
| Key width SW | 68 mm |
| Collar diameter (E) | 75 mm |
| Total length TL | 56 mm - 67 mm |
| Type of cable anchorage | A |
| Install. torques cap nut | 40 N m |
| Install. torques fitting | 40 N m |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10065495 |
| Type | NMSKV 2 EMV-Z |
| Packing unit | 10 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| NMSKV 2 EMV-Z 10065495 EN_10065495.pdf | 207 Kbytes |
|
