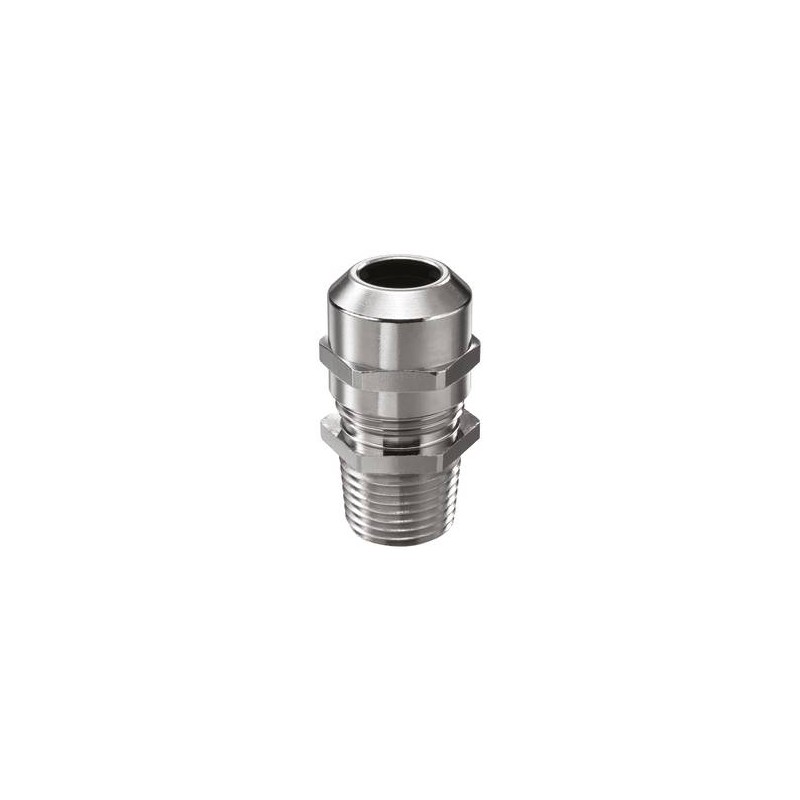

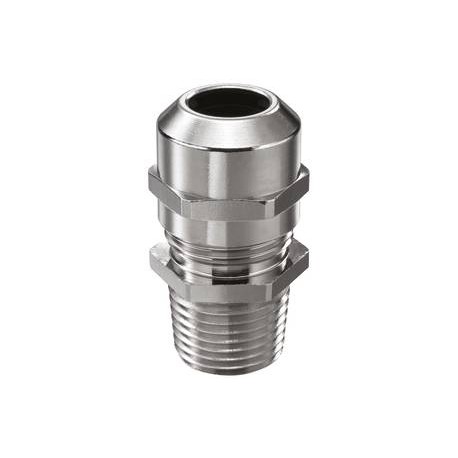

NMSKV 1/2 10065482 WISKA IP68 metal cable glands, range from 6.0mm to 13.0mm, NPT thread 1/2
NMSKV 1/2
10065482
WISKA
50
IP68 metal cable glands, range from 6.0mm to 13.0mm, NPT thread 1/2
Cable gland, brass nickel-plated, NPT 1/2"
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Thread type | NPT |
| Ø Connection thread D | 1/2" |
| Length screw-in thread L | 16 mm |
| Ø cable diameter min | 6 mm |
| Ø cable diameter max | 13 mm |
| Ø cable diameter UL | 7,5 mm - 11,3 mm |
| Key width SW | 24 mm |
| Collar diameter (E) | 27 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 8 N m |
| Install. torques cap nut | 8 N m |
| Impact category | 6 |
| Total length TL | 38 mm - 45 mm |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10065482 |
| Type | NMSKV 1/2 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
| Remarks: When using a locknut NMMU, an additional connection thread gasket EADR must be used to achieve protection class IP69 / IP68. | |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG WISKA CABLE ENTRIES AND PROTECTION EN.pdf | 8 Mbytes |
|
| PDF CATALOG WISKA JUCTION BOXES EN.pdf | 3 Mbytes |
|
| PDF CATALOG WISKA LIGHTING INSTALLATION AND MARITIME APP EN.pdf | 5 Mbytes |
|
| NMSKV 1/2 10065482 EN_10065482.pdf | 356 Kbytes |
|
