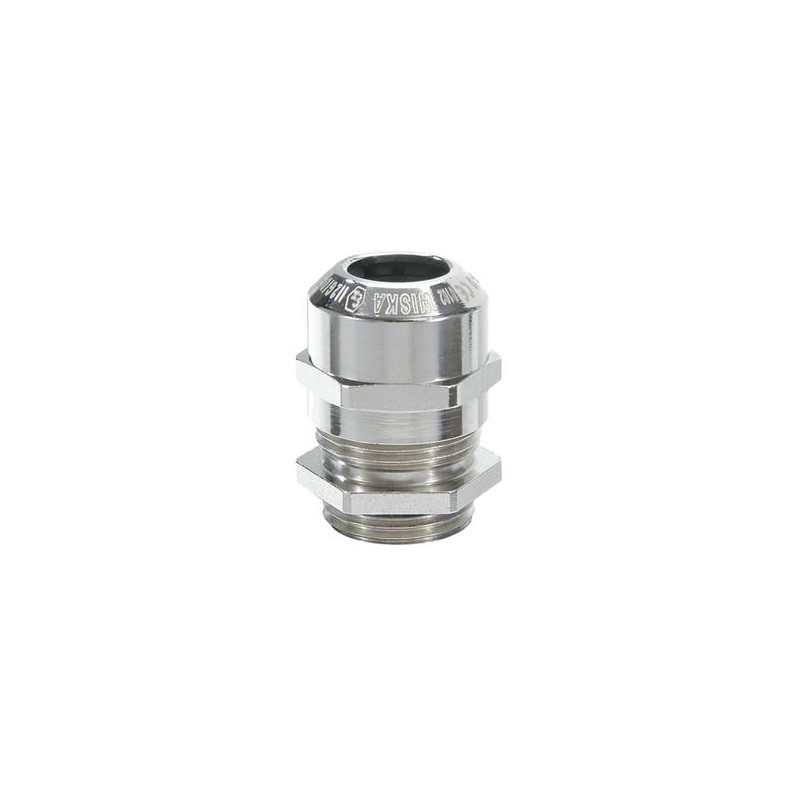

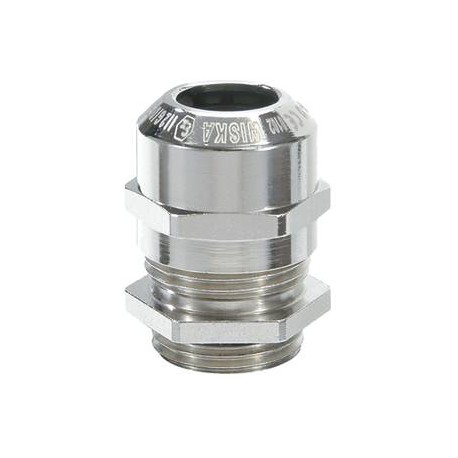

NMSKE 3/4 10101085 WISKA METAL cable glands "ATEX" IP68, range from 10.0mm to 17.0mm, NPT thread 3/4
NMSKE 3/4
10101085
WISKA
50
METAL cable glands "ATEX" IP68, range from 10.0mm to 17.0mm, NPT thread 3/4
Ex-cable gland, brass nickel-plated, NPT 3/4"
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex eb, Ex tb |
| Ex-Certificate | ATEX, IECEx |
| Thread type | NPT |
| Ø Connection thread D | 3/4" |
| Length screw-in thread L | 16 mm |
| Ø cable diameter min | 10 mm |
| Ø cable diameter max | 17 mm |
| Key width SW | 29 mm |
| Collar diameter (E) | 32 mm |
| Total length TL | 40 mm - 48 mm |
| Install. torques fitting | 10 N m |
| Install. torques cap nut | 10 N m |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10101085 |
| Type | NMSKE 3/4 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
| Remarks: When using a locknut NMMU, an additional connection thread gasket EADR must be used to achieve protection class IP66 / IP68. | |
