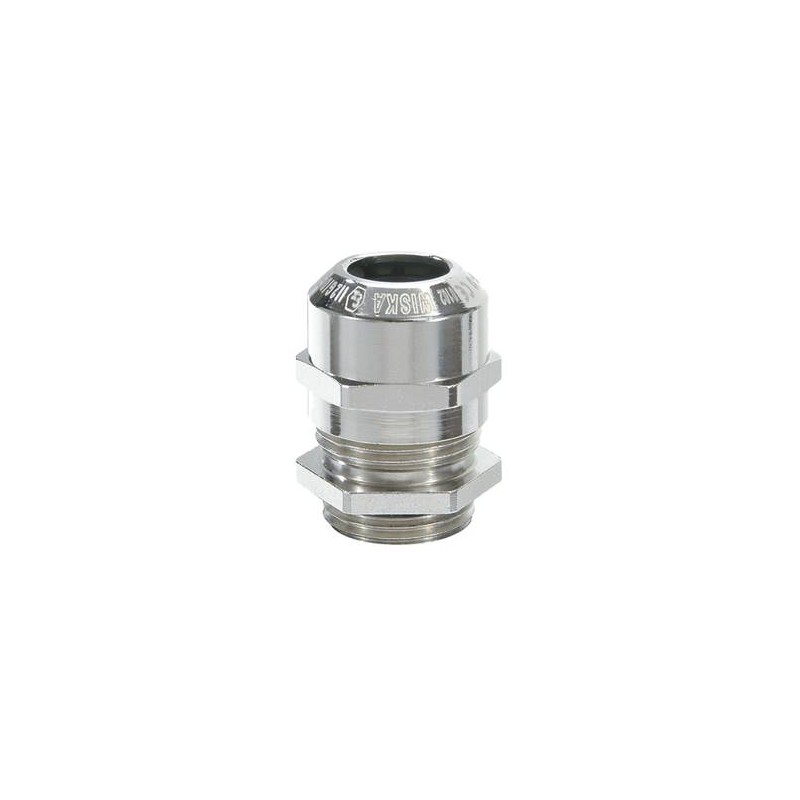

NMSKE 1 1/4 10101087 WISKA Metal cable glands "ATEX" IP68, range from 16.0mm to 28.0mm, NPT thread 1-1/4
NMSKE 1 1/4
10101087
WISKA
10
Metal cable glands "ATEX" IP68, range from 16.0mm to 28.0mm, NPT thread 1-1/4
Ex-cable gland, brass nickel-plated, NPT 1 1/4"
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex eb, Ex tb |
| Ex-Certificate | ATEX, IECEx |
| Thread type | NPT |
| Ø Connection thread D | 1 1/4" |
| Length screw-in thread L | 20 mm |
| Ø cable diameter min | 16 mm |
| Ø cable diameter max | 28 mm |
| Key width SW | 46 mm |
| Collar diameter (E) | 51 mm |
| Total length TL | 50 mm - 58 mm |
| Install. torques fitting | 20 N m |
| Install. torques cap nut | 20 N m |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10101087 |
| Type | NMSKE 1 1/4 |
| Packing unit | 10 |
| ETIM-Classification | EC000441 |
| Remarks: When using a locknut NMMU, an additional connection thread gasket EADR must be used to achieve protection class IP66 / IP68. | |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG WISKA CABLE ENTRIES AND PROTECTION EN.pdf | 8 Mbytes |
|
| PDF CATALOG WISKA JUCTION BOXES EN.pdf | 3 Mbytes |
|
| PDF CATALOG WISKA LIGHTING INSTALLATION AND MARITIME APP EN.pdf | 5 Mbytes |
|
| NMSKE 1 1/4 10101087 EN_10101087.pdf | 329 Kbytes |
|
