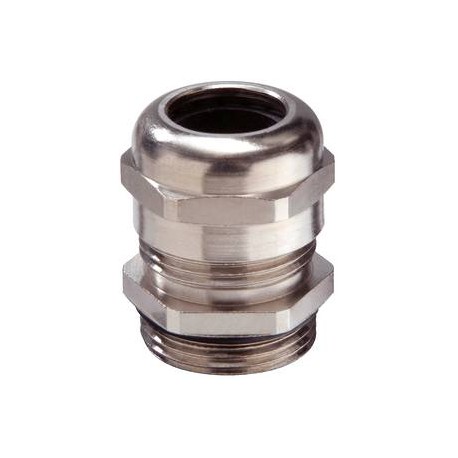

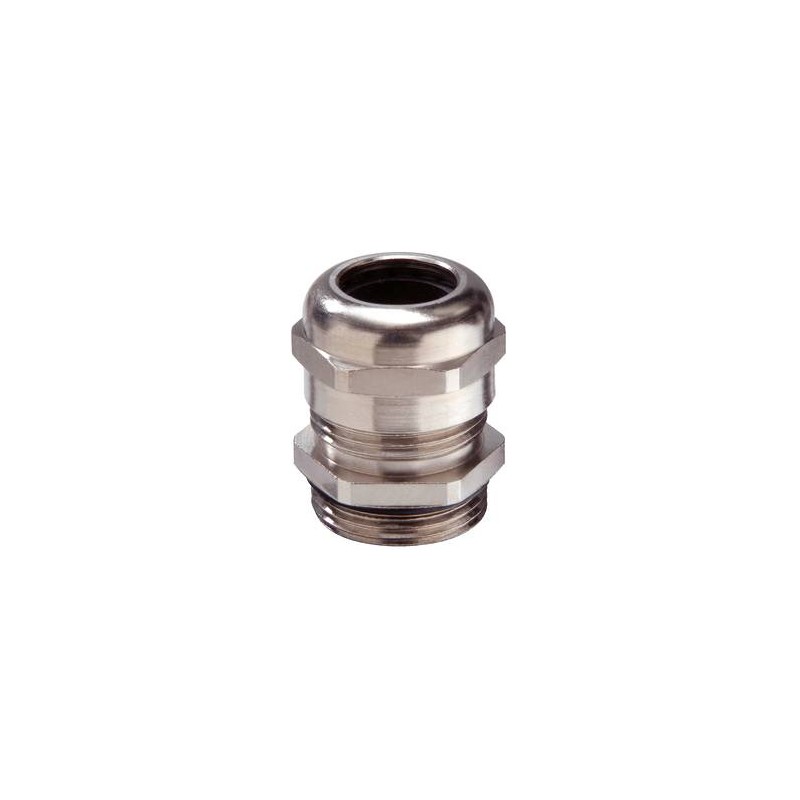

MSKV 36 10062288 WISKA Metal cable glands, IP68, range from 22.0mm to 32.0mm, PG 36 thread
MSKV 36
10062288
WISKA
10
Metal cable glands, IP68, range from 22.0mm to 32.0mm, PG 36 thread
Cable gland, brass nickel-plated, Pg 36
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | TPV |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Thread type | PG |
| Ø Connection thread D | 36 |
| Length screw-in thread L | 10 mm |
| Ø cable diameter min | 22 mm |
| Ø cable diameter max | 32 mm |
| Key width SW | 50 mm |
| Collar diameter (E) | 54 mm |
| Total length TL | 38 mm - 48 mm |
| Install. torques fitting | 70 N m |
| Install. torques cap nut | 45 N m |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10062288 |
| Type | MSKV 36 |
| Packing unit | 10 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| MSKV 36 10062288 EN_10062288.pdf | 269 Kbytes |
|
