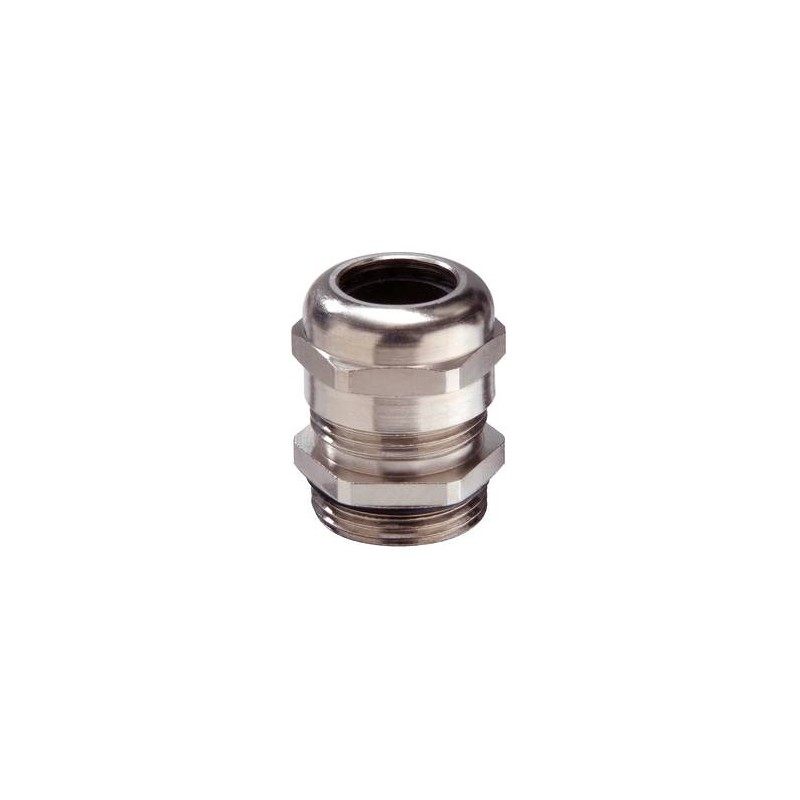

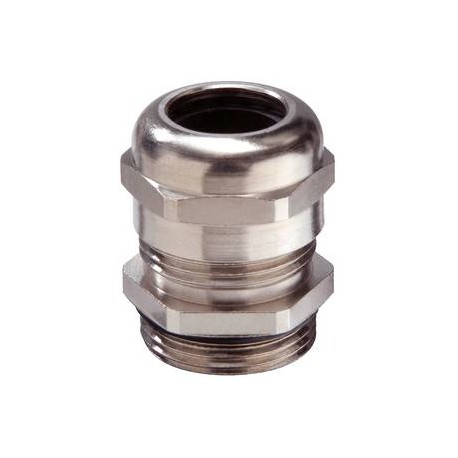

MSKV 21 10062286 WISKA Metal cable glands, IP68, range from 13.0mm to 18.0mm, thread PG 21
MSKV 21
10062286
WISKA
50
Metal cable glands, IP68, range from 13.0mm to 18.0mm, thread PG 21
Cable gland, brass nickel-plated, Pg 21
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | TPV |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | PG |
| Ø Connection thread D | 21 |
| Length screw-in thread L | 7 mm |
| Ø cable diameter min | 13 mm |
| Ø cable diameter max | 18 mm |
| Key width SW | 30 mm |
| Collar diameter (E) | 34 mm |
| Total length TL | 29 mm - 34 mm |
| Install. torques fitting | 35 N m |
| Install. torques cap nut | 20 N m |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10062286 |
| Type | MSKV 21 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| MSKV 21 10062286 EN_10062286.pdf | 269 Kbytes |
|
