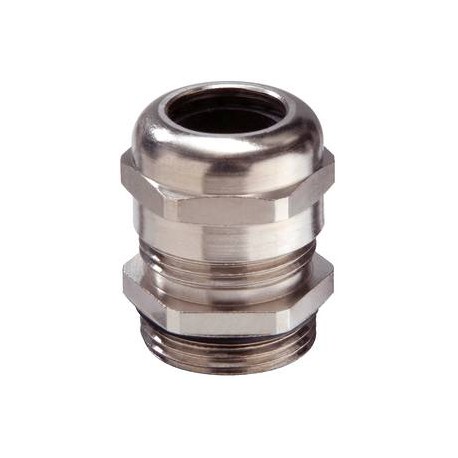

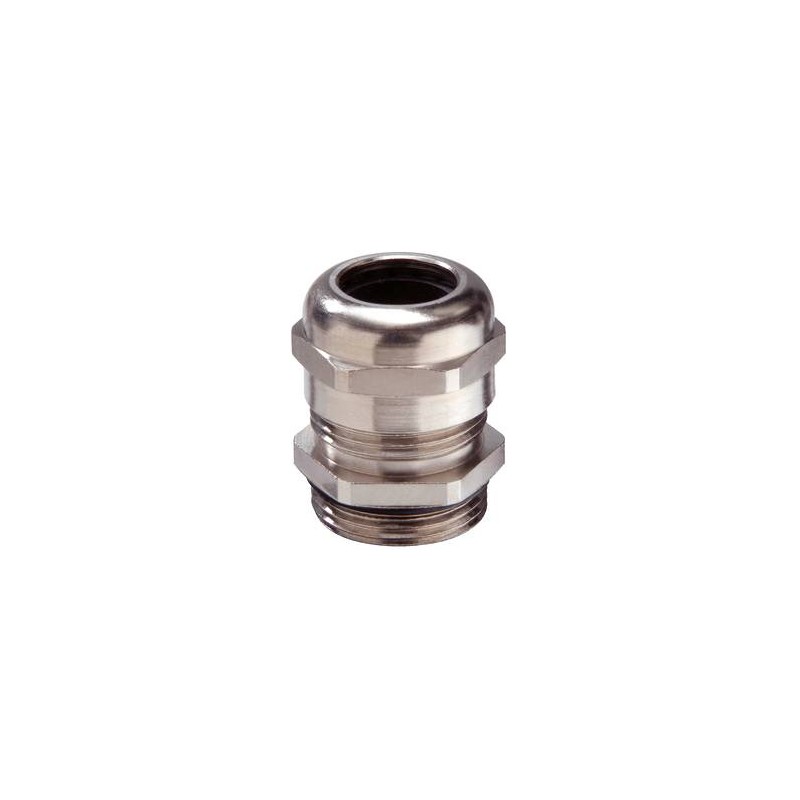

MSKV 13,5 10062284 WISKA Metal cable glands, IP68, range from 6.0mm to 12.0mm, thread PG 13
MSKV 13,5
10062284
WISKA
50
Metal cable glands, IP68, range from 6.0mm to 12.0mm, thread PG 13
Cable gland, brass nickel-plated, Pg 13,5
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | TPV |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | PG |
| Ø Connection thread D | 13,5 |
| Length screw-in thread L | 6,5 mm |
| Ø cable diameter min | 6 mm |
| Ø cable diameter max | 12 mm |
| Key width SW | 22 mm |
| Collar diameter (E) | 24 mm |
| Total length TL | 23,5 mm - 29,5 mm |
| Install. torques fitting | 18 N m |
| Install. torques cap nut | 10 N m |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10062284 |
| Type | MSKV 13,5 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| MSKV 13,5 10062284 EN_10062284.pdf | 270 Kbytes |
|
