KVMS 72-Z48/cr 10016940 WISKA Hexagonal, metal DIN 89280 "Z" IP54 cable glands for EMC, range 44 to 48.5mm, ..
KVMS 72-Z48/cr
10016940
WISKA

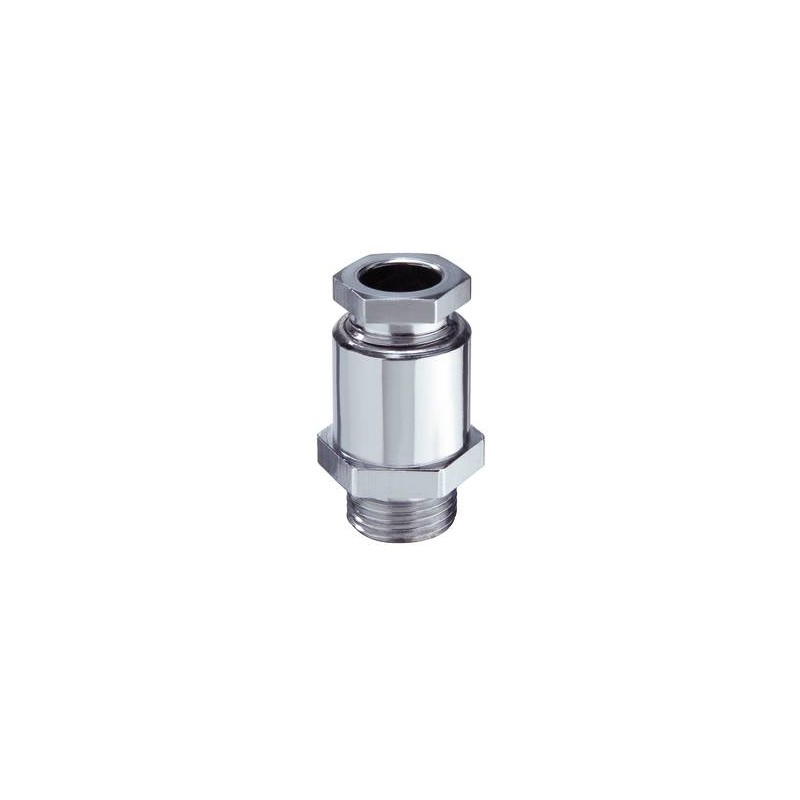

Hexagonal, metal DIN 89280 "Z" IP54 cable glands for EMC, range 44 to 48.5mm, thread M72
Cable gland, brass chromed-plated, DIN 89280, M72
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass chromium-plated |
| Material sealing gasket | EPDM |
| Material earthing insert | Brass chromium-plated |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP54 |
| Thread type | M |
| Ø Connection thread D | 72 |
| Lead | 2 |
| Length screw-in thread L | 16 mm |
| Ø cable diameter min | 44 mm |
| Ø cable diameter max | 48,5 mm |
| Key width SW1 | 70 mm |
| Key width SW2 | 78 mm |
| Collar diameter E1 | 78 mm |
| Collar diameter E2 | 87 mm |
| Total length TL | 73 mm |
| Install. torques fitting | 20 N m |
| Install. torques cap nut | 15 N m |
| Surface | Chromium-plated |
| Order no. chrome-plated | 10016940 |
| Type | KVMS 72-Z48/Cr |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| KVMS 72-Z48/cr 10016940 EN_10016940.pdf | 329 Kbytes |
|
