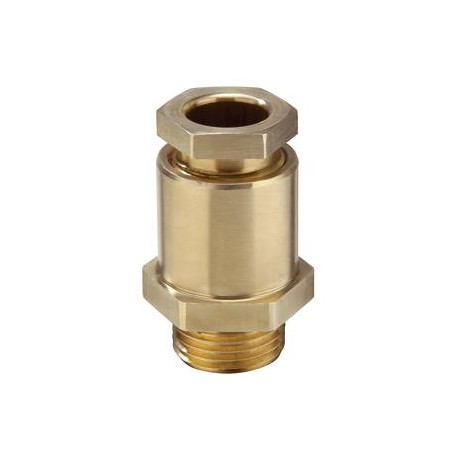

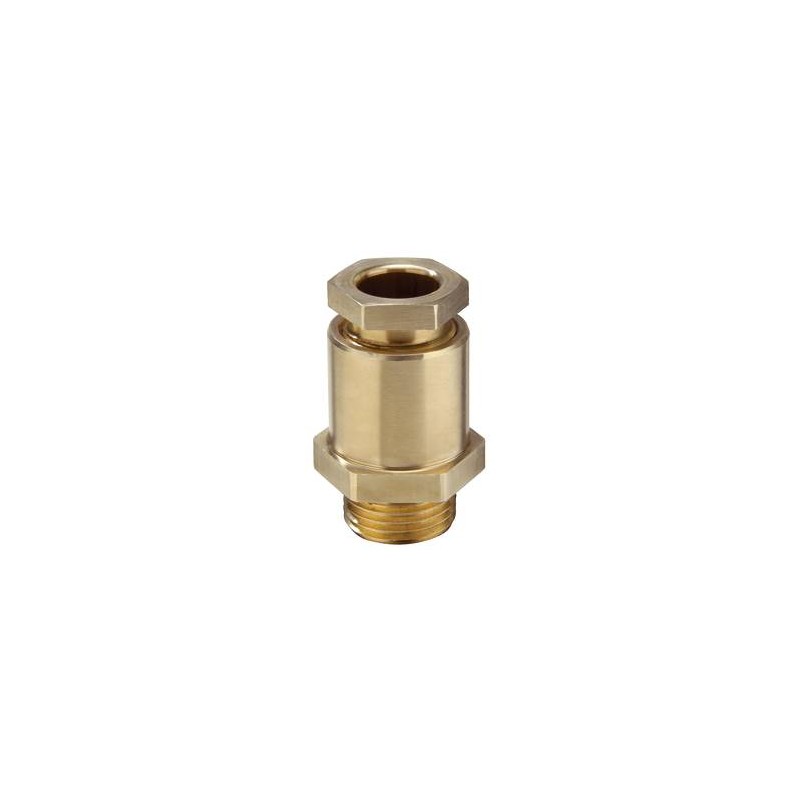

KVMS 56-W41/lb 10016888 WISKA Hexagonal, metal DIN 89280 "W" IP54 cable glands range from 38 to 41.5mm, thre..
KVMS 56-W41/lb
10016888
WISKA
Hexagonal, metal DIN 89280 "W" IP54 cable glands range from 38 to 41.5mm, thread M56
Cable gland, brass, DIN 89280, M56
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP54 |
| Thread type | M |
| Ø Connection thread D | 56 |
| Lead | 2 |
| Length screw-in thread L | 15 mm |
| Ø cable diameter min | 38 mm |
| Ø cable diameter max | 41,5 mm |
| Key width SW1 | 55 mm |
| Key width SW2 | 62 mm |
| Collar diameter E1 | 61 mm |
| Collar diameter E2 | 68 mm |
| Total length TL | 68 mm |
| Install. torques fitting | 20 N m |
| Install. torques cap nut | 15 N m |
| Surface | Bright |
| Order no. bright | 10016888 |
| Type | KVMS 56-W41 |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| KVMS 56-W41/lb 10016888 EN_10016888.pdf | 307 Kbytes |
|
