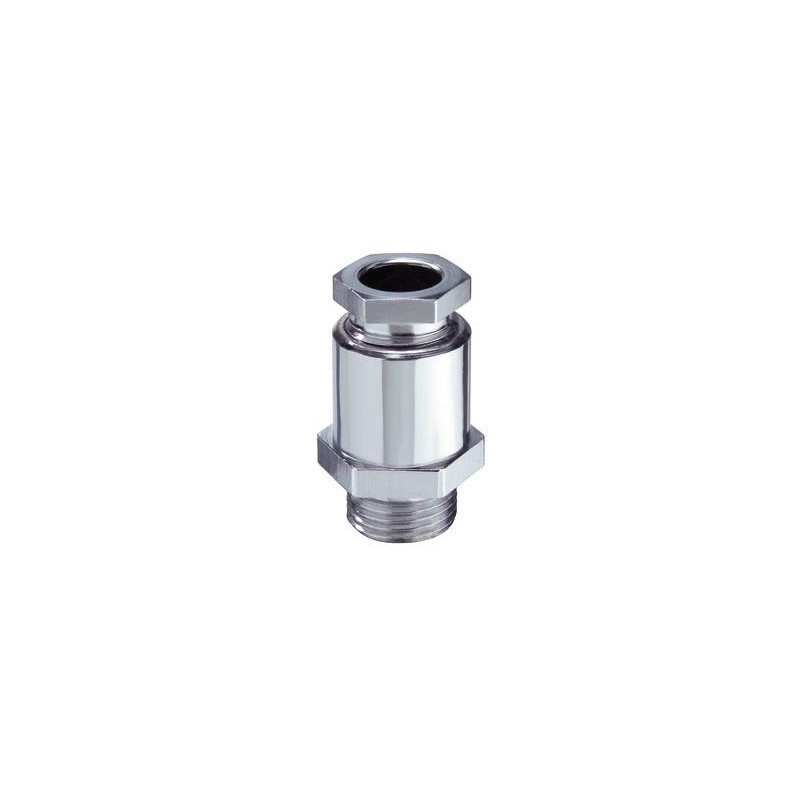

KVMS 36-W22/cr 10016956 WISKA Hexagonal, metal DIN 89280 "W" IP54 cable glands range from 20 to 22.5mm, thre..
KVMS 36-W22/cr
10016956
WISKA
Hexagonal, metal DIN 89280 "W" IP54 cable glands range from 20 to 22.5mm, thread M36
Cable gland, brass chromed-plated, DIN 89280, M36
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass chromium-plated |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP54 |
| Thread type | M |
| Ø Connection thread D | 36 |
| Lead | 2 |
| Length screw-in thread L | 13 mm |
| Ø cable diameter min | 20 mm |
| Ø cable diameter max | 22,5 mm |
| Key width SW1 | 36 mm |
| Key width SW2 | 41 mm |
| Collar diameter E1 | 39 mm |
| Collar diameter E2 | 45 mm |
| Total length TL | 58 mm |
| Install. torques fitting | 15 N m |
| Install. torques cap nut | 15 N m |
| Surface | Chromium-plated |
| Order no. chrome-plated | 10016956 |
| Type | KVMS 36-W22/Cr |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| KVMS 36-W22/cr 10016956 EN_10016956.pdf | 324 Kbytes |
|
