View larger

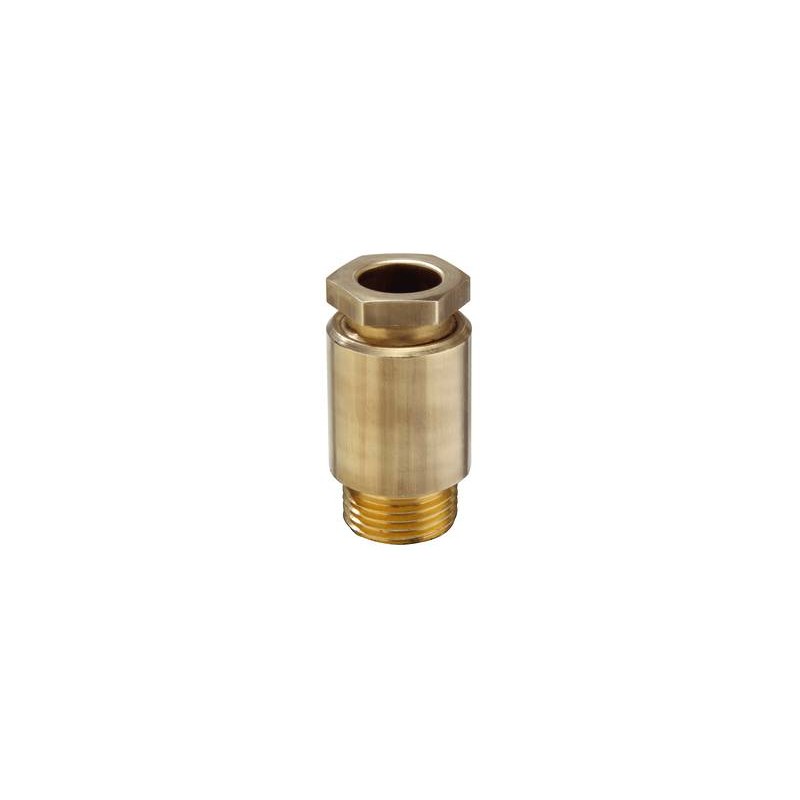

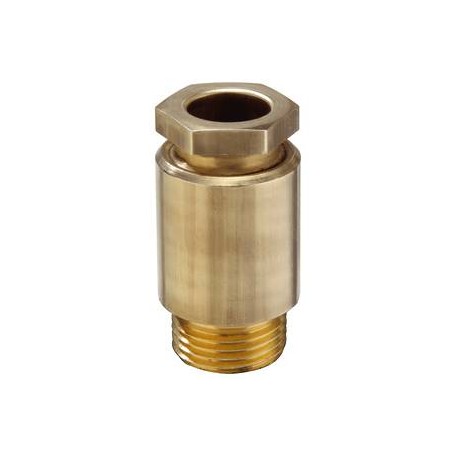

KVM 72-Z48/lb 10010856 WISKA Cylindrical, metallic DIN 89280 "Z" IP54 cable glands for EMC, range from 44 to..
KVM 72-Z48/lb
10010856
WISKA
Cylindrical, metallic DIN 89280 "Z" IP54 cable glands for EMC, range from 44 to 48.5mm, thread M72
Cable gland, brass, DIN 89280, M72
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
More info
▲Features
| Material cable gland | Brass |
| Material sealing gasket | EPDM |
| Material earthing insert | Brass chromium-plated |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP54 |
| Thread type | M |
| Ø Connection thread D | 72 |
| Lead | 2 |
| Length screw-in thread L | 16 mm |
| Ø cable diameter min | 44 mm |
| Ø cable diameter max | 48,5 mm |
| Key width SW | 70 mm |
| Collar diameter (E) | 75 mm |
| Total length TL | 73 mm |
| Install. torques fitting | 20 N m |
| Install. torques cap nut | 15 N m |
| Impact category | 6 |
| Advice | * Similar to DIN 89280 |
| Surface | Bright |
| Order no. bright | 10010856 |
| Type | KVM 72-Z48 |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG WISKA CABLE ENTRIES AND PROTECTION EN.pdf | 8 Mbytes |
|
| PDF CATALOG WISKA JUCTION BOXES EN.pdf | 3 Mbytes |
|
| PDF CATALOG WISKA LIGHTING INSTALLATION AND MARITIME APP EN.pdf | 5 Mbytes |
|
| KVM 72-Z48/lb 10010856 EN_10010856.pdf | 369 Kbytes |
|
