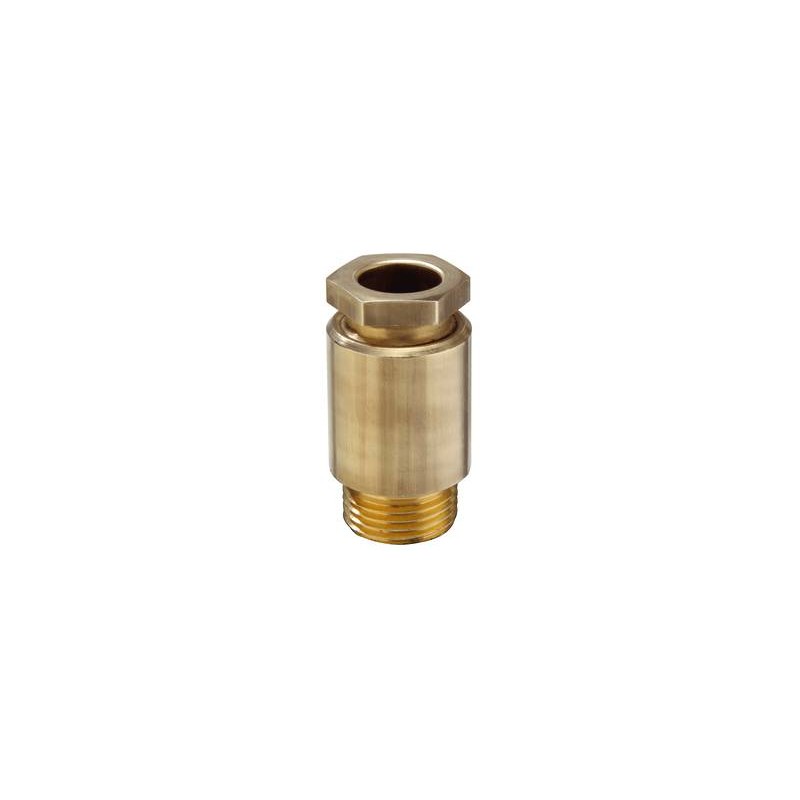

KVM 56-Z41/lb 10010854 WISKA Cylindrical, metallic DIN 89280 "Z" IP54 cable glands for EMC, range 38 to 41.5..
KVM 56-Z41/lb
10010854
WISKA
Cylindrical, metallic DIN 89280 "Z" IP54 cable glands for EMC, range 38 to 41.5mm, thread M56
Cable gland, brass, DIN 89280, M56
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass |
| Material sealing gasket | EPDM |
| Material earthing insert | Brass chromium-plated |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP54 |
| Thread type | M |
| Ø Connection thread D | 56 |
| Lead | 2 |
| Length screw-in thread L | 15 mm |
| Ø cable diameter min | 38 mm |
| Ø cable diameter max | 41,5 mm |
| Key width SW | 55 mm |
| Collar diameter (E) | 63 mm |
| Total length TL | 68 mm |
| Install. torques fitting | 20 N m |
| Install. torques cap nut | 15 N m |
| Impact category | 6 |
| Surface | Bright |
| Order no. bright | 10010854 |
| Type | KVM 56-Z41 |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| KVM 56-Z41/lb 10010854 EN_10010854.pdf | 367 Kbytes |
|
