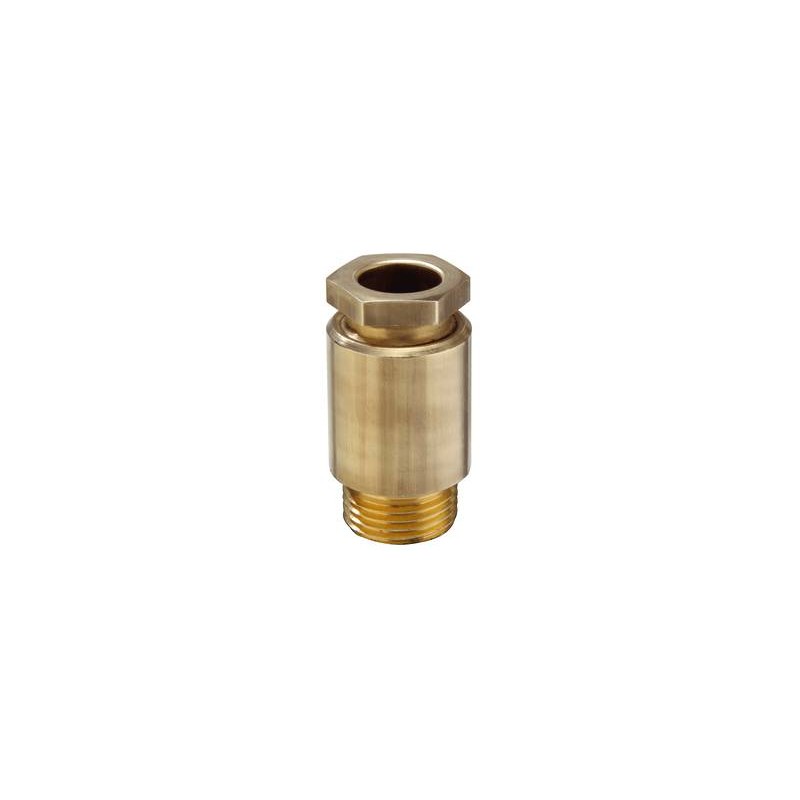

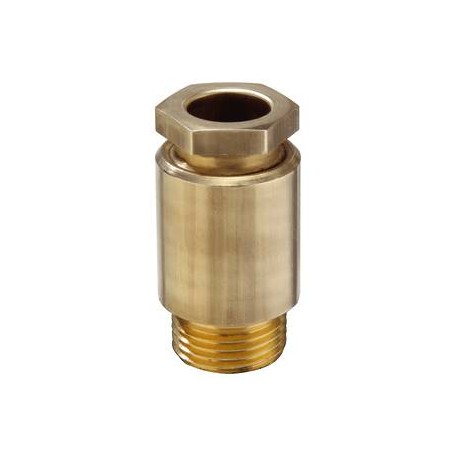

KVM 36-Z26/lb 10010848 WISKA Cylindrical, metallic DIN 89280 "Z" IP54 cable glands for EMC, range from 24 to..
KVM 36-Z26/lb
10010848
WISKA
Cylindrical, metallic DIN 89280 "Z" IP54 cable glands for EMC, range from 24 to 26.5mm, thread M36
Cable gland, brass, DIN 89280, M36
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass |
| Material sealing gasket | EPDM |
| Material earthing insert | Brass chromium-plated |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP54 |
| Thread type | M |
| Ø Connection thread D | 36 |
| Lead | 2 |
| Length screw-in thread L | 13 mm |
| Ø cable diameter min | 24 mm |
| Ø cable diameter max | 26,5 mm |
| Key width SW | 36 mm |
| Collar diameter (E) | 41 mm |
| Total length TL | 58 mm |
| Install. torques fitting | 15 N m |
| Install. torques cap nut | 15 N m |
| Impact category | 6 |
| Surface | Bright |
| Order no. bright | 10010848 |
| Type | KVM 36-Z26 |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| KVM 36-Z26/lb 10010848 EN_10010848.pdf | 367 Kbytes |
|
