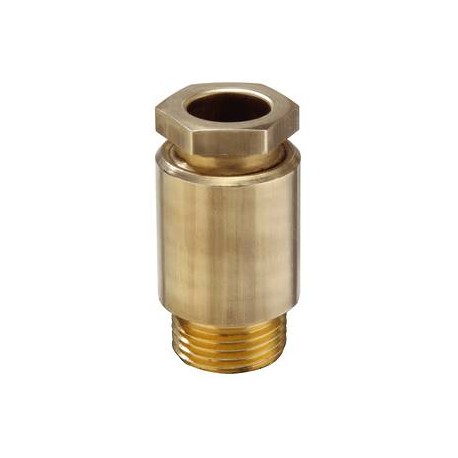

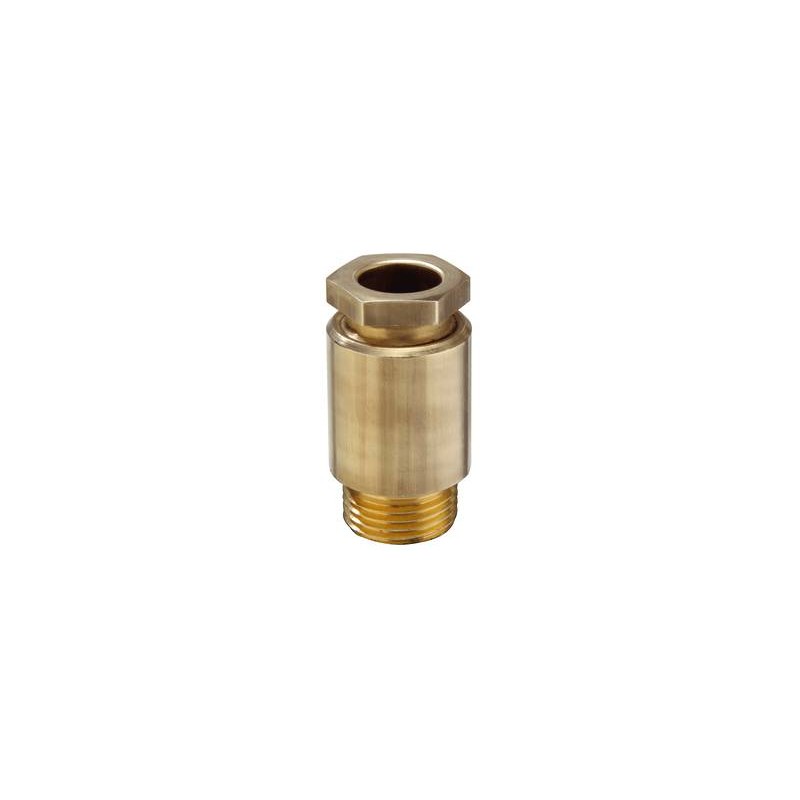

KVM 30-W20/lb 10010872 WISKA Cylindrical, metallic DIN 89280 "W" IP54 range from 18 to 20.5mm, thread M30
KVM 30-W20/lb
10010872
WISKA
Cylindrical, metallic DIN 89280 "W" IP54 range from 18 to 20.5mm, thread M30
Cable gland, brass, DIN 89280, M30
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP54 |
| Thread type | M |
| Ø Connection thread D | 30 |
| Lead | 2 |
| Length screw-in thread L | 12 mm |
| Ø cable diameter min | 18 mm |
| Ø cable diameter max | 20,5 mm |
| Key width SW | 30 mm |
| Collar diameter (E) | 34 mm |
| Total length TL | 52 mm |
| Install. torques fitting | 10 N m |
| Install. torques cap nut | 10 N m |
| Surface | Bright |
| Order no. bright | 10010872 |
| Type | KVM 30-W20 |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| KVM 30-W20/lb 10010872 EN_10010872.pdf | 362 Kbytes |
|
