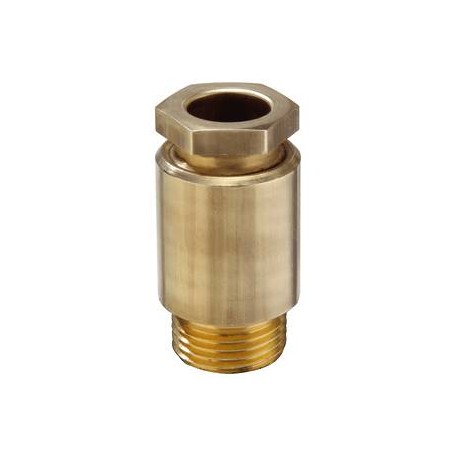

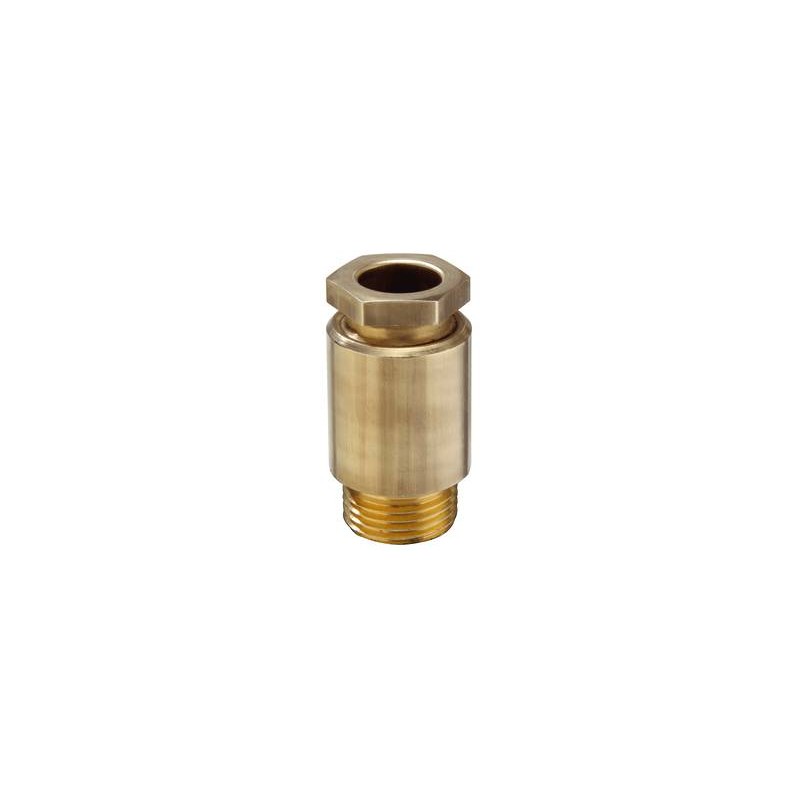

KVM 105-Z75*/lb 10010860 WISKA Cylindrical, metallic DIN 89280 "Z" IP54 cable glands for EMC, range 73 to 78..
KVM 105-Z75*/lb
10010860
WISKA
Cylindrical, metallic DIN 89280 "Z" IP54 cable glands for EMC, range 73 to 78mm, thread M105
Cable gland, brass, DIN 89280, M105
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass |
| Material sealing gasket | EPDM |
| Material earthing insert | Brass chromium-plated |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP54 |
| Thread type | M |
| Ø Connection thread D | 105 |
| Lead | 2 |
| Length screw-in thread L | 20 mm |
| Ø cable diameter min | 73 mm |
| Ø cable diameter max | 78 mm |
| Key width SW | 105 mm |
| Collar diameter (E) | 113 mm |
| Total length TL | 88 mm |
| Install. torques fitting | 30 N m |
| Install. torques cap nut | 30 N m |
| Impact category | 6 |
| Advice | * Similar to DIN 89280 |
| Surface | Bright |
| Order no. bright | 10010860 |
| Type | KVM 105-Z75 |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| KVM 105-Z75*/lb 10010860 EN_10010860.pdf | 368 Kbytes |
|
