KVM 105-Z75*/cr
10014549
WISKA
1
Cylindrical, metallic DIN 89280 "Z" IP54 cable glands for EMC, range 73 to 78mm, thread M105

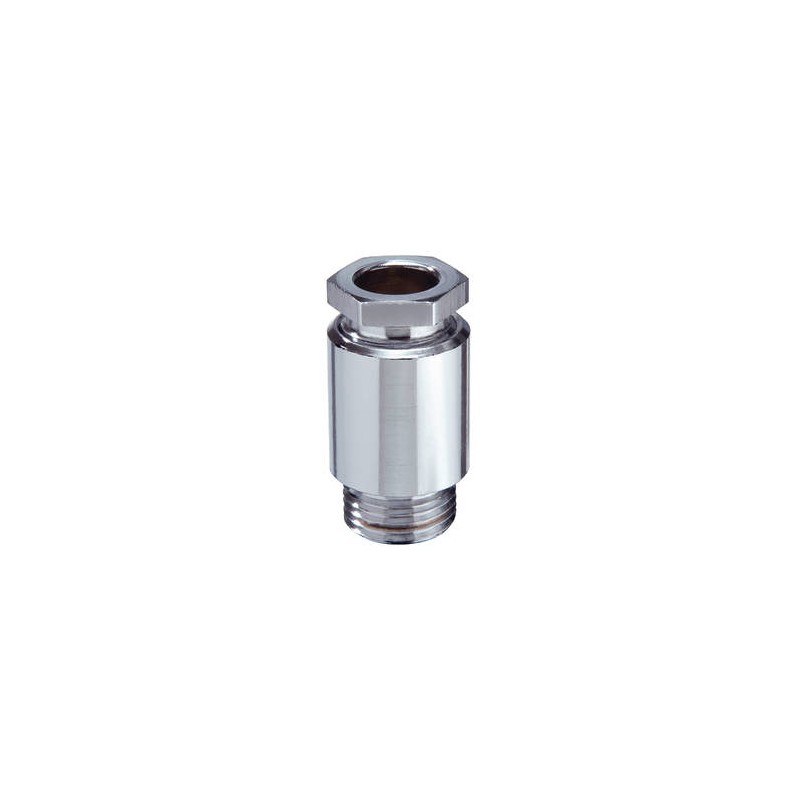

Cable gland, brass chromed-plated, DIN 89280, M105
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Material cable gland | Brass chromium-plated |
Material sealing gasket | EPDM |
Material earthing insert | Brass chromium-plated |
Temp. range min | -40 °C |
Temp. range max | 100 °C |
Protection class | IP54 |
Thread type | M |
Ø Connection thread D | 105 |
Lead | 2 |
Length screw-in thread L | 20 mm |
Ø cable diameter min | 73 mm |
Ø cable diameter max | 78 mm |
Key width SW | 105 mm |
Collar diameter (E) | 113 mm |
Total length TL | 88 mm |
Install. torques fitting | 30 N m |
Install. torques cap nut | 30 N m |
Advice | * Similar to DIN 89280 |
Surface | Chromium-plated |
Order no. chrome-plated | 10014549 |
Type | KVM 105-Z75/Cr |
Packing unit | 1 |
ETIM-Classification | EC000441 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE WISKA EN.pdf | 12 Mbytes | |
KVM 105-Z75*/cr 10014549 EN_10014549.pdf | 328 Kbytes |
