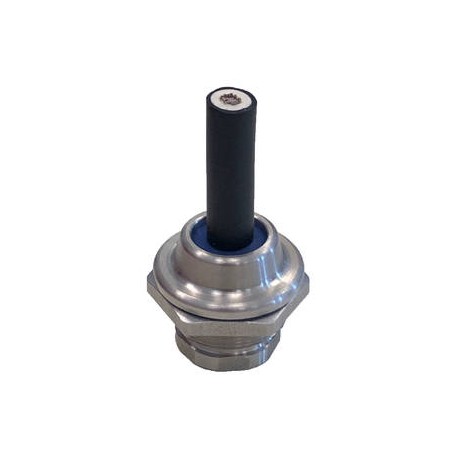

HGSM 63 FD Pack 10103630 WISKA AISI 303 stainless glands, IP69K pack silicone gaskets, for 32 to 49mm range,..
HGSM 63 FD Pack
10103630
WISKA
AISI 303 stainless glands, IP69K pack silicone gaskets, for 32 to 49mm range, M63 thread

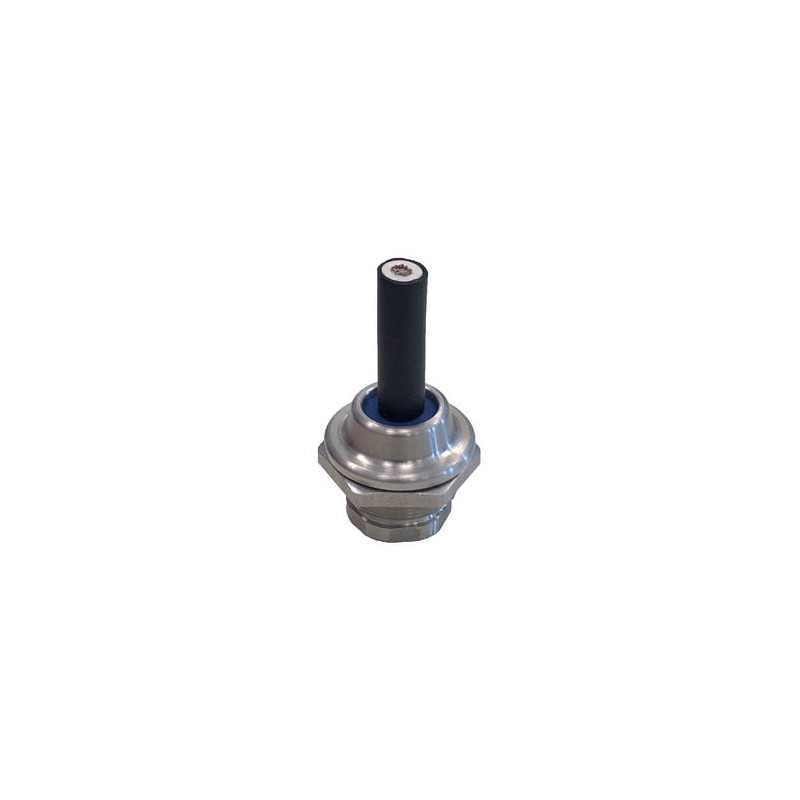

Cable gland, stainless steel, M63
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Stainless steel A2 (1.4305) |
| Material sealing gasket | Silicone |
| Temp. range min | -60 °C |
| Temp. range max | 180 °C |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 63 |
| Lead | 1,5 |
| Ø cable diameter min | 32 mm |
| Ø cable diameter max | 49 mm |
| Key width SW1 | 56 mm |
| Key width SW2 | 70 mm |
| Collar diameter E1 | 60 mm |
| Collar diameter E2 | 75 mm |
| LxWxS (max) | 59x63x10mm |
| BxL | 70x18mm |
| Total length TL | 42 mm - 60 mm |
| Advice | Incl. sealing rings, locknut |
| WISKA-Order no. | 10103630 |
| Type | HGSM 63 FD pack |
| Packing unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| HGSM 63 FD Pack 10103630 EN_10103630.pdf | 253 Kbytes |
|
