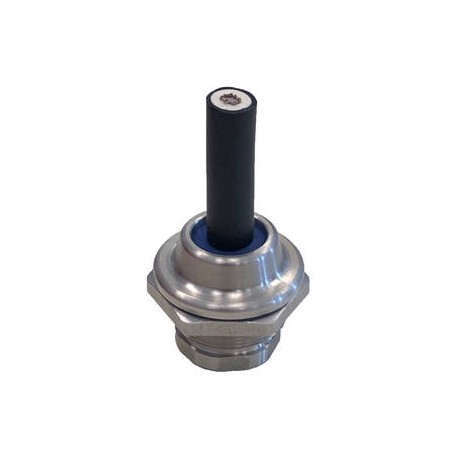

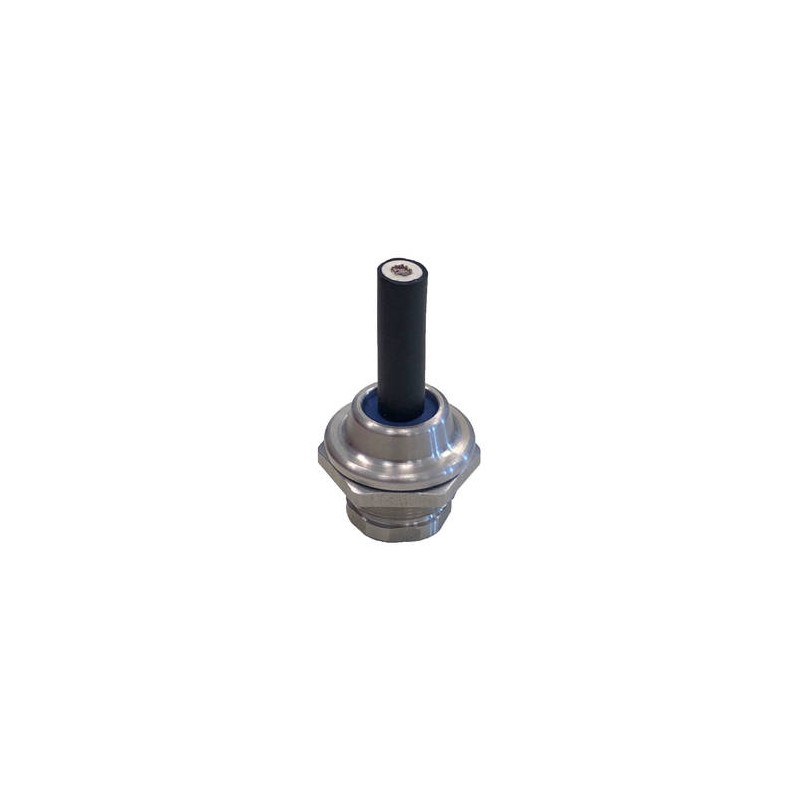

HGSM 50 FD Pack 10103629 WISKA AISI 303 stainless glands, IP69K pack silicone gaskets, for 26 to 28mm range,..
HGSM 50 FD Pack
10103629
WISKA
AISI 303 stainless glands, IP69K pack silicone gaskets, for 26 to 28mm range, M50 thread
Cable gland, stainless steel, M50
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Stainless steel A2 (1.4305) |
| Material sealing gasket | Silicone |
| Temp. range min | -60 °C |
| Temp. range max | 180 °C |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 50 |
| Lead | 1,5 |
| Ø cable diameter min | 26 mm |
| Ø cable diameter max | 38 mm |
| Key width SW1 | 45 mm |
| Key width SW2 | 60 mm |
| Collar diameter E1 | 47 mm |
| Collar diameter E2 | 65 mm |
| LxWxS (max) | 47x50x10mm |
| BxL | 56x16mm |
| Total length TL | 37 mm - 53 mm |
| Advice | Incl. sealing rings, locknut |
| WISKA-Order no. | 10103629 |
| Type | HGSM 50 FD pack |
| Packing unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| HGSM 50 FD Pack 10103629 EN_10103629.pdf | 253 Kbytes |
|
